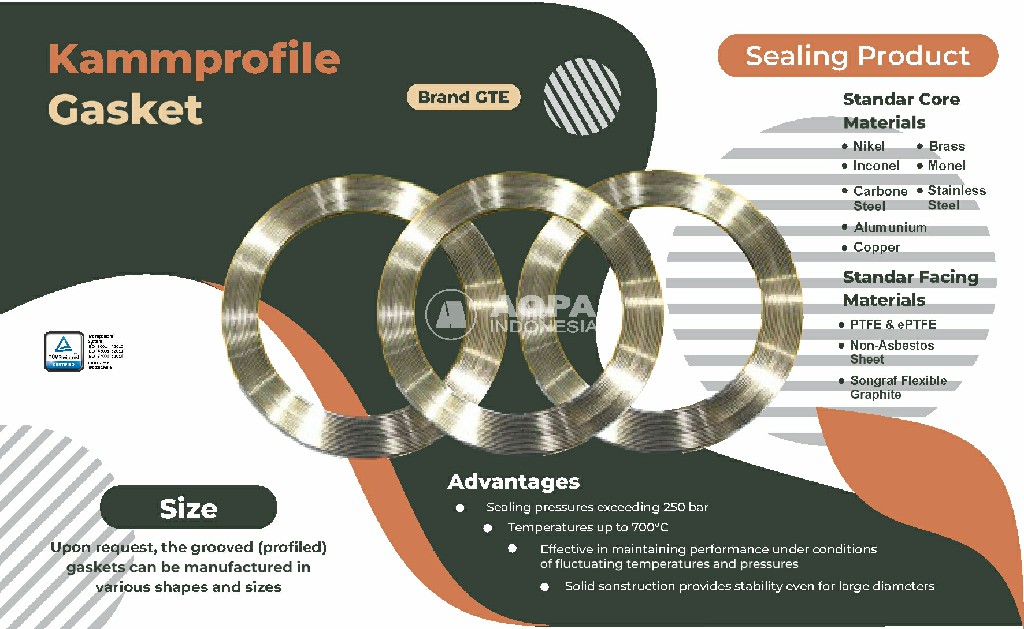

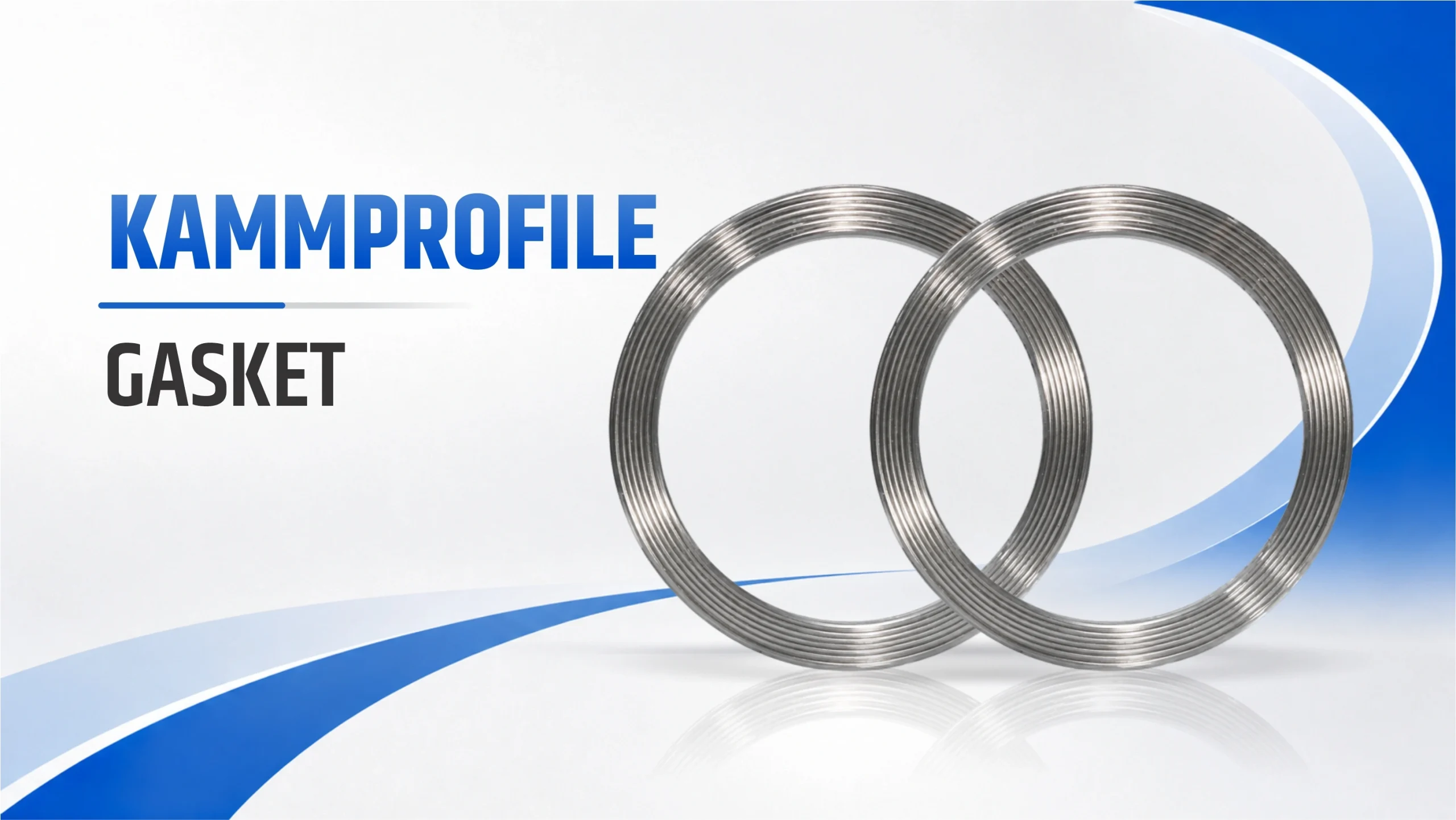

Kammprofile Gasket

Brand :

GTE

Kammprofile gaskets with grooved (profiled) surfaces have proven to be very effective for sealing flange connections, and suitable for applications with high pressures, high temperatures, and fluctuating conditions. Non-metallic gasket provide excellent sealing properties, ensuring that flanges are not damaged even at extreme loads. Kammprofile gasket is the preferred gasket solution when improved performance at low seating stresses is required. It features excellent anti-blow-out properties. A tighter joint is provided with a reliable solid metal-to-metal seal combined with a soft sealing face.

Categories: , ,

* Quantity

Length (Meters) - Optional

Share On

KAMMPROFILE GASKET

Advantages

  • Sealing pressures exceeding 250 bar
  • Temperatures up to 700 C
  • Effective in maintaining performance under conditions of fluctuating temperatures and pressures
  • Solid construction provides stability even for large diameters

Type of Gaskets

Type FF are suitble for tongue and groove and male-female flanges in pipe joints and vessels or as a heat exchanger gasket

Type FR are utilizing an integral outer locating ring for correct gasket positioning within the material flange bolt circle

SIZES

Upon request, the grooved (profiled) gaskets can be manufactured in various shapes and sizes

Standard core thickness is 4mm as normal (0,16*): Other thicknesses and materials are available to suit specific applications

Core MaterialTemperatureMin. MPa (PSI)Max. MPa (PSI)
Songraf Flexsible Graphite650 C (1200 F)17 (2500)500 (7250)
Non – Asbestos Sheet175 – 400 C (350 – 750F)23 (3300)500 (7250)
PRFE & ePTFE260 C (500 F)17 (2500)500 (7250)
Standard core thickness is 4mm as normal (0.16*): Other thicknesses and materials are available to suit specific applications
Core Material Temperature
Stainless Steel 535 – 870 C (1000-1600 F)
Carbone Steel 425 C (800 F)
Brass 260 C (500 F)
Copper 316 C (600 F)
Aluminium 425 C (800 F)
Monel 815 C (1500 F)
Nikel 760 C (1400 F)
Inconel 1100 C (2000 F)
