GTE3340

Material :
Asbetos Packing with PTFE Impregnation

Brand :

GTE

Made of asbestos yarn and PTFE dispersion. Suitable for pumps with medium pressure. Suitable for general applications especially large rotary pump with medium pressure.

Categories: , ,

* Shape

* Dimensions-round













* Dimensions-square













* Package-size



* Quantity

Length (Meters) - Optional

Share On

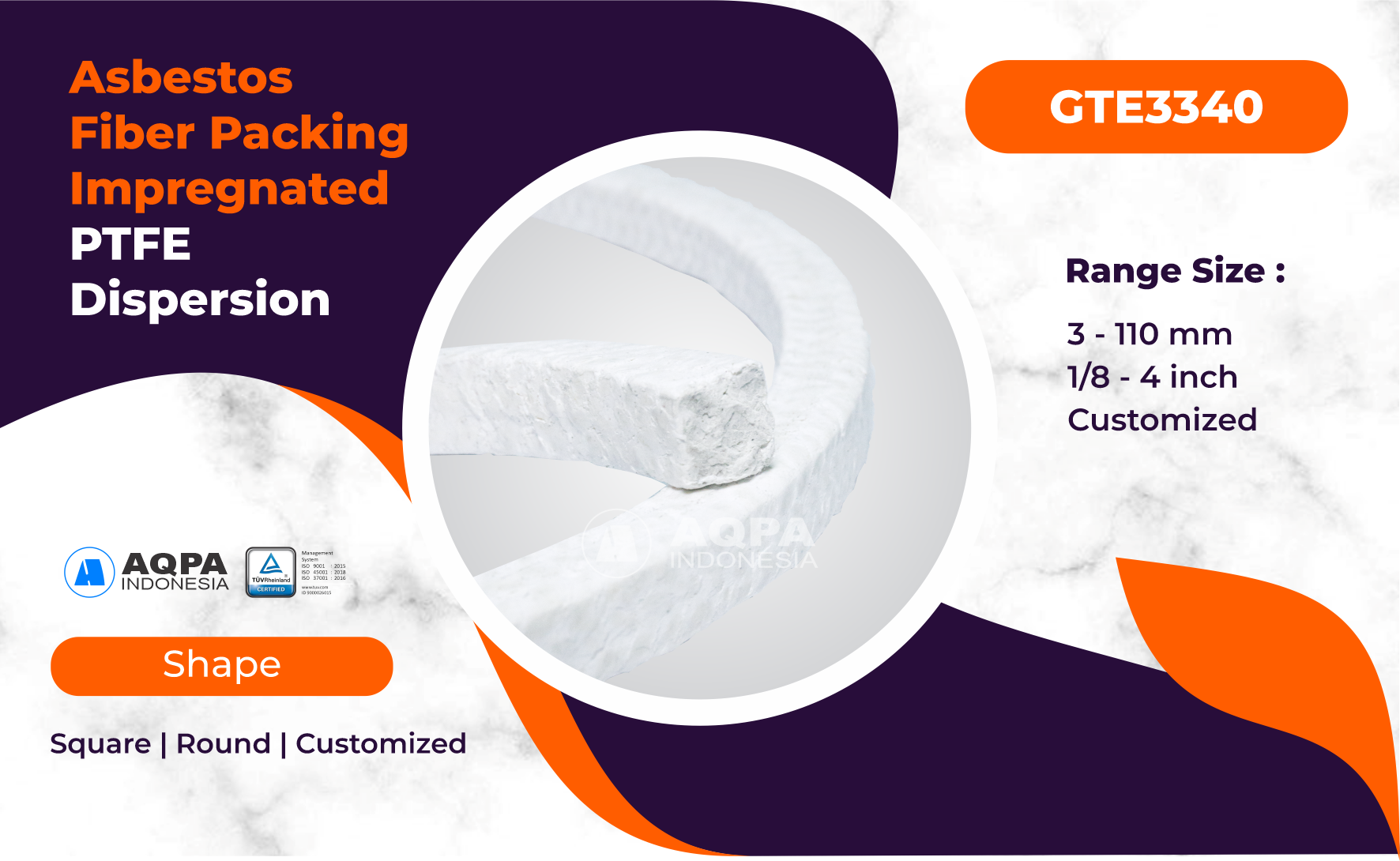

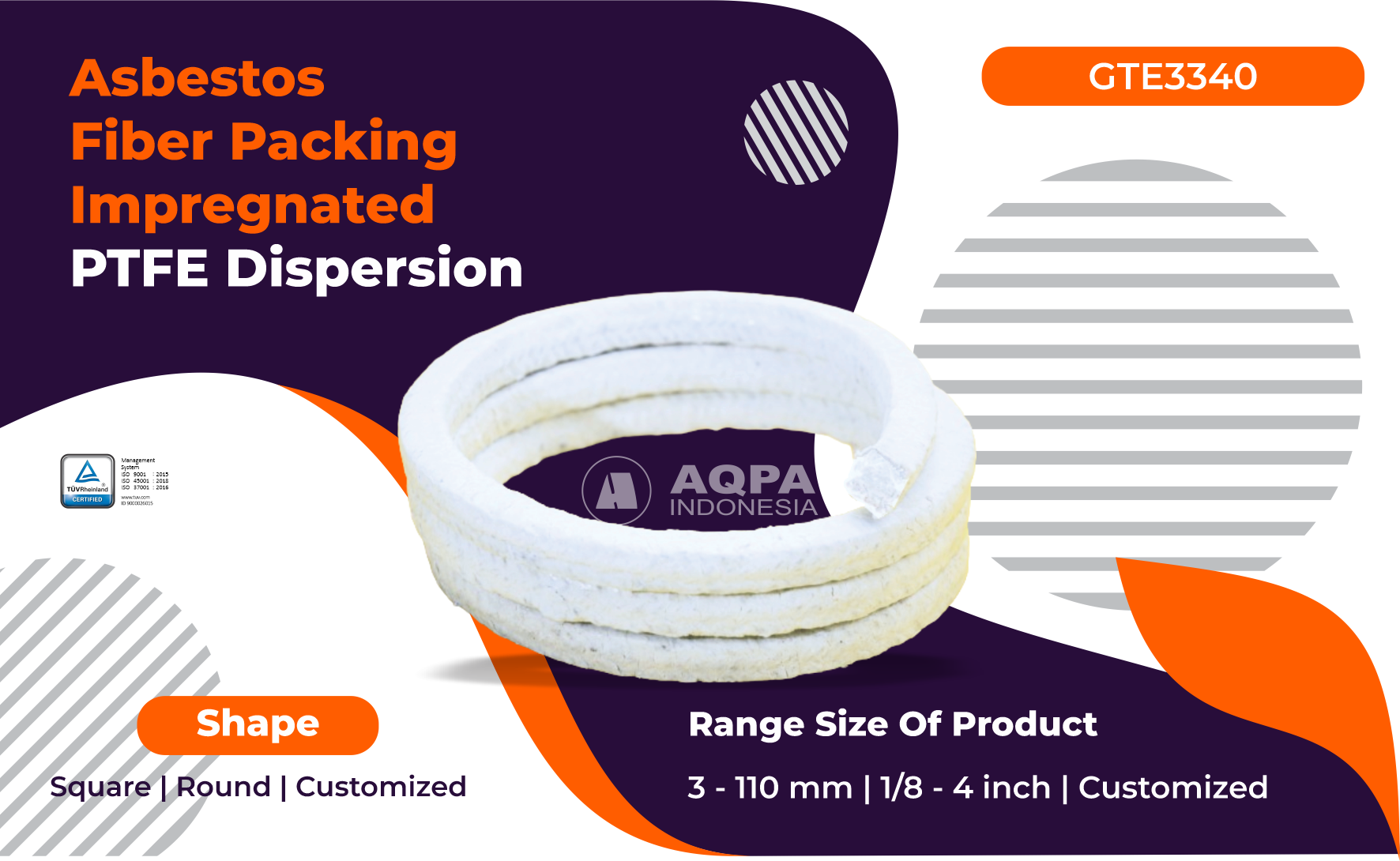

GTE 3340 Asbetos Packing with PTFE Impregnation
Made of asbestos yarn and PTFE dispersion. Suitable for pumps with medium pressure. Suitable for general applications especially large rotary pump with medium pressure.

Dimension Spesification

Size  Length PER KG’s Length 2KG Length 5KG
3 mm 56 112 280
6 mm 15,6 31,2 78
8 mm 9 18 45
10 mm 6 12 30
12 mm 4,6 9,2 23
14 mm 3,7 7,4 18,5
16 mm 2,7 5,4 13,5
19 mm 2 4 10
22 mm 1,4 2,8 7
25 mm 1,2 2,4 6
30 mm 0,9 1,8 4,6
38 mm 0,6 1,2 3
Meters Meters Meters
P [bar]

20 Bar

pH

2 – 10

Speed

10 m/s

Temperature

E Max 260 C

Package Size

2 KG, 5 KG
