GTE9044

Material :
Pure PTFE Packing With Special Lubrican

Brand :

GTE

Made of pure PTFE yarn with lubrication.

Suitable for operations that involves serious chemicals and corrosive materials.

Categories: , ,

* Shape

* Dimensions-round













* Dimensions-square













* Package-size



* Quantity

Length (Meters) - Optional

Share On

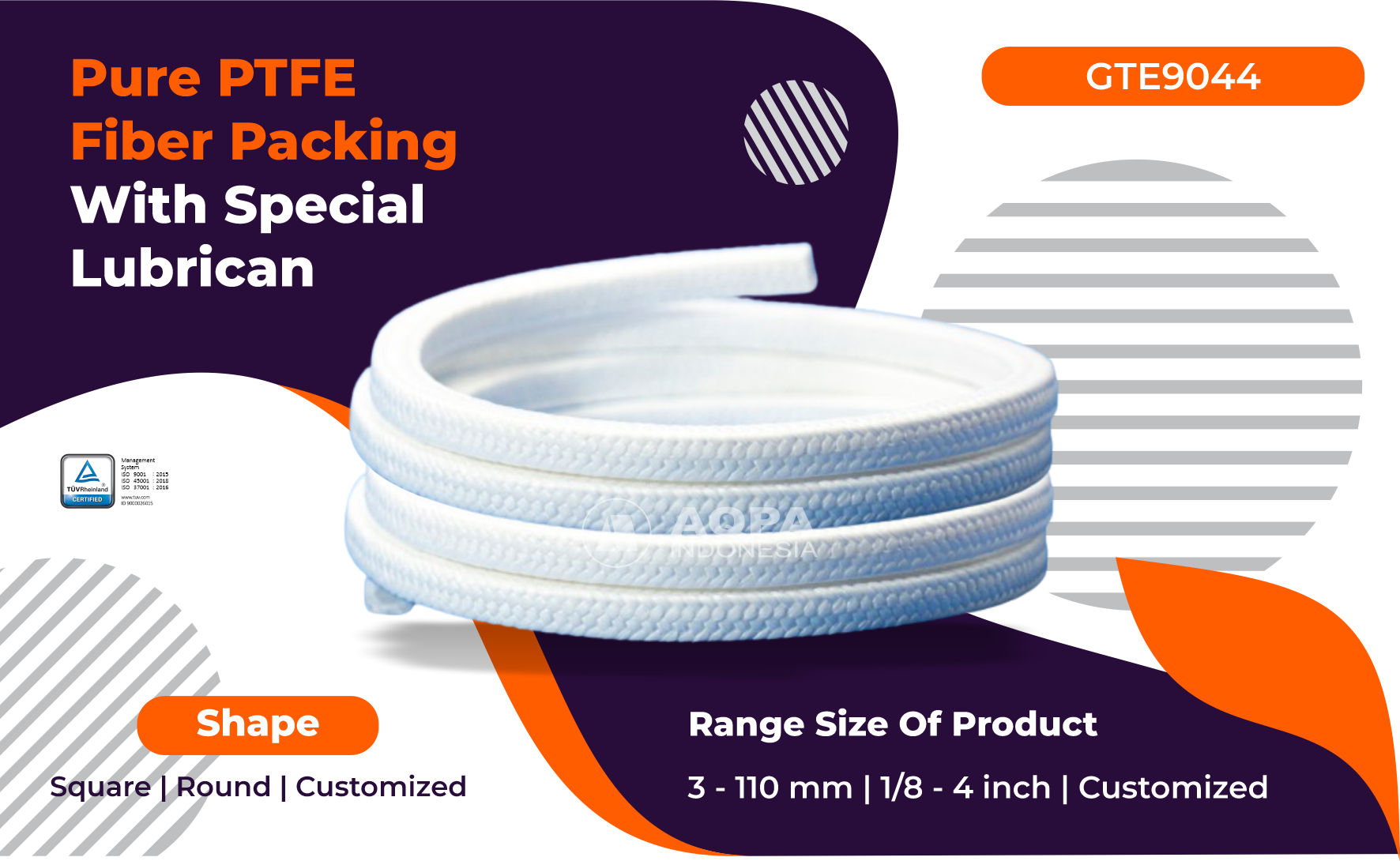

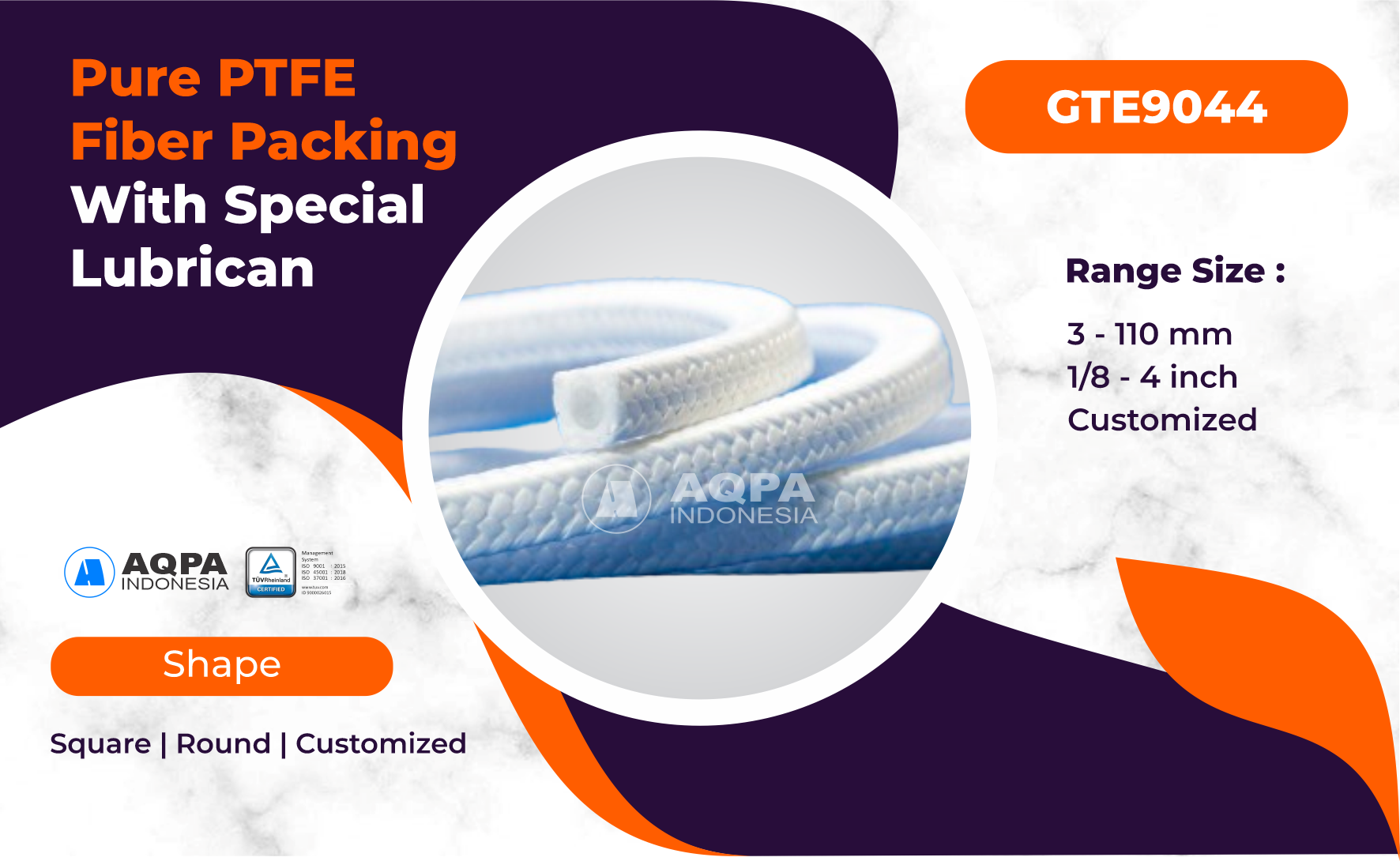

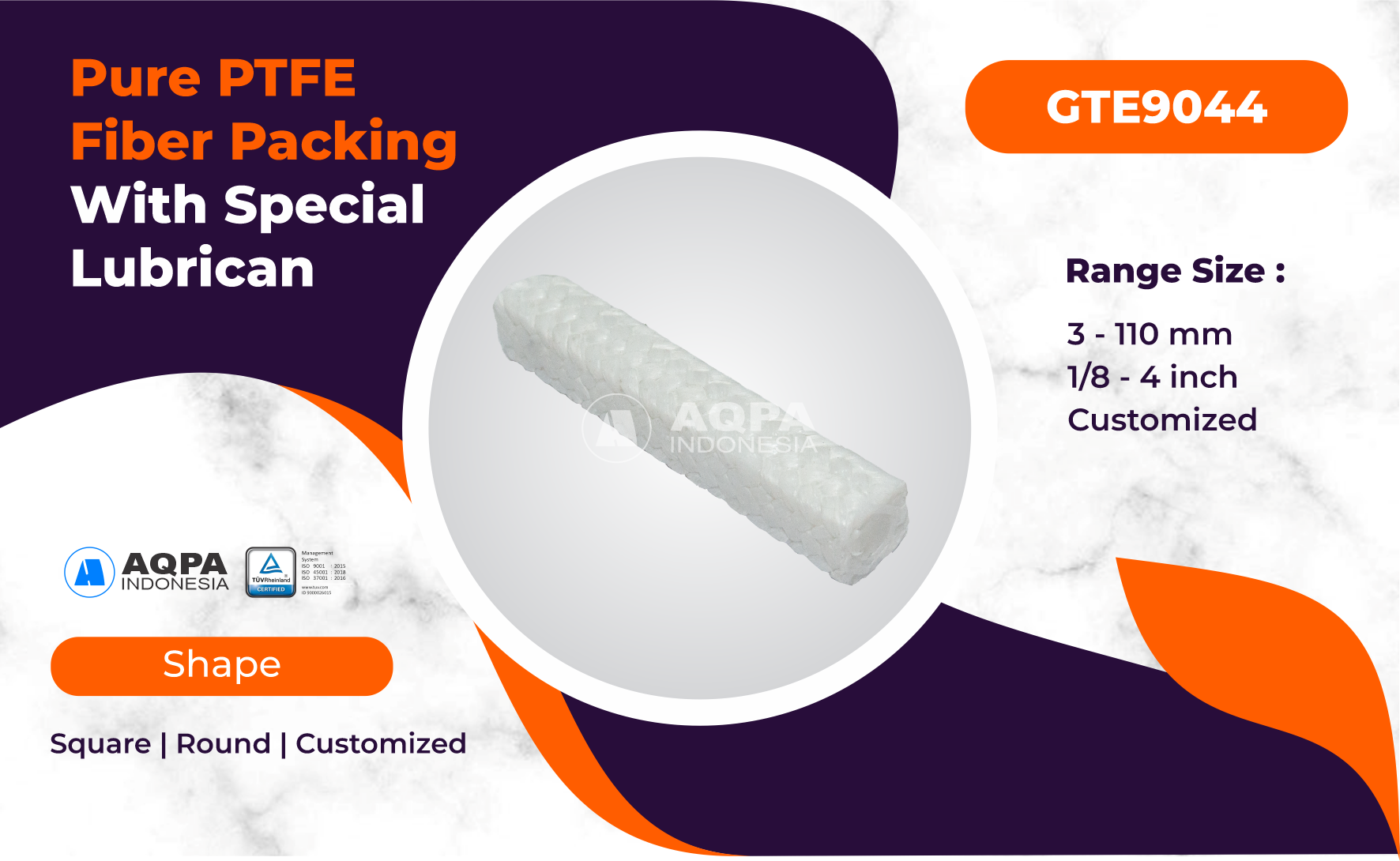

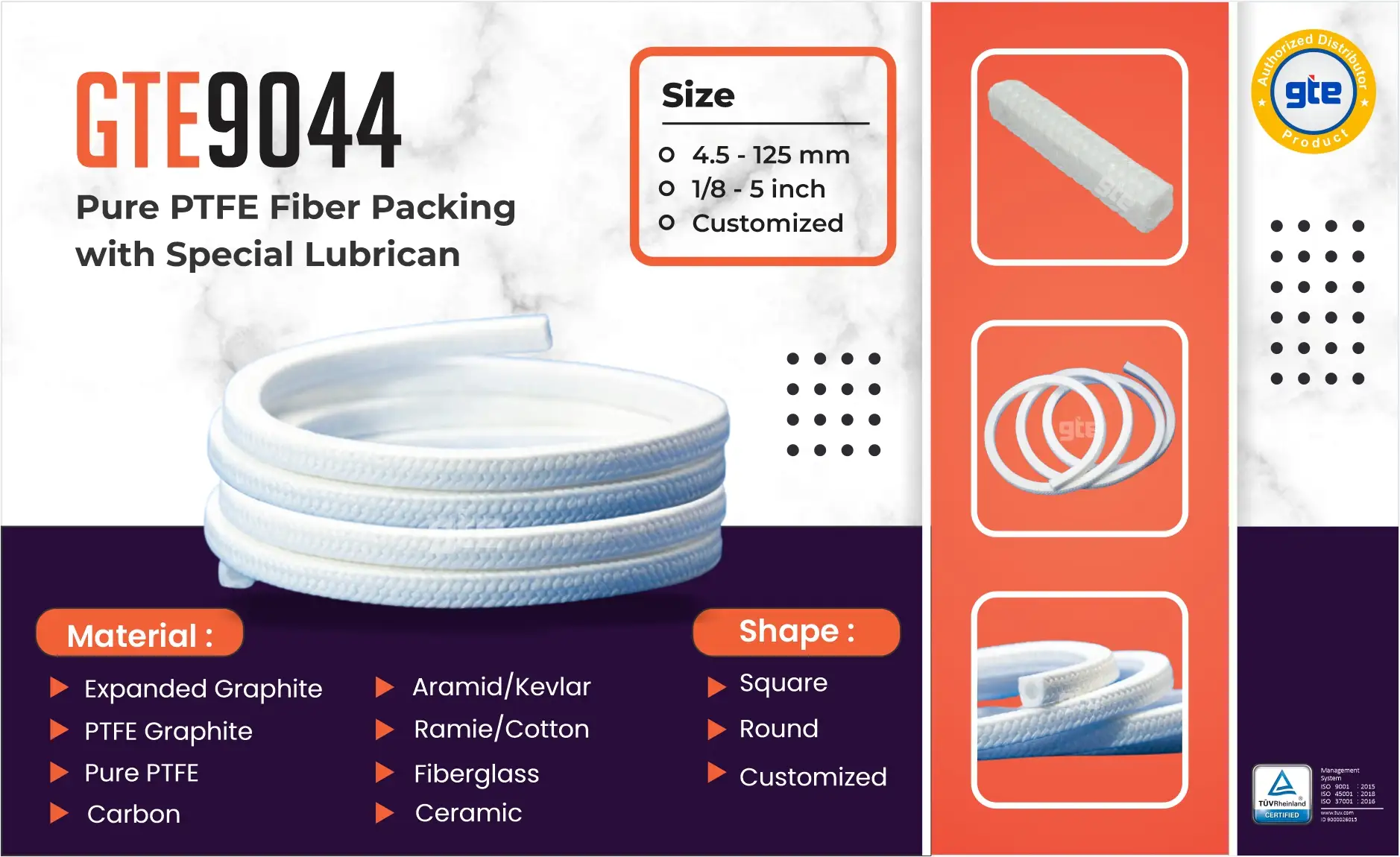

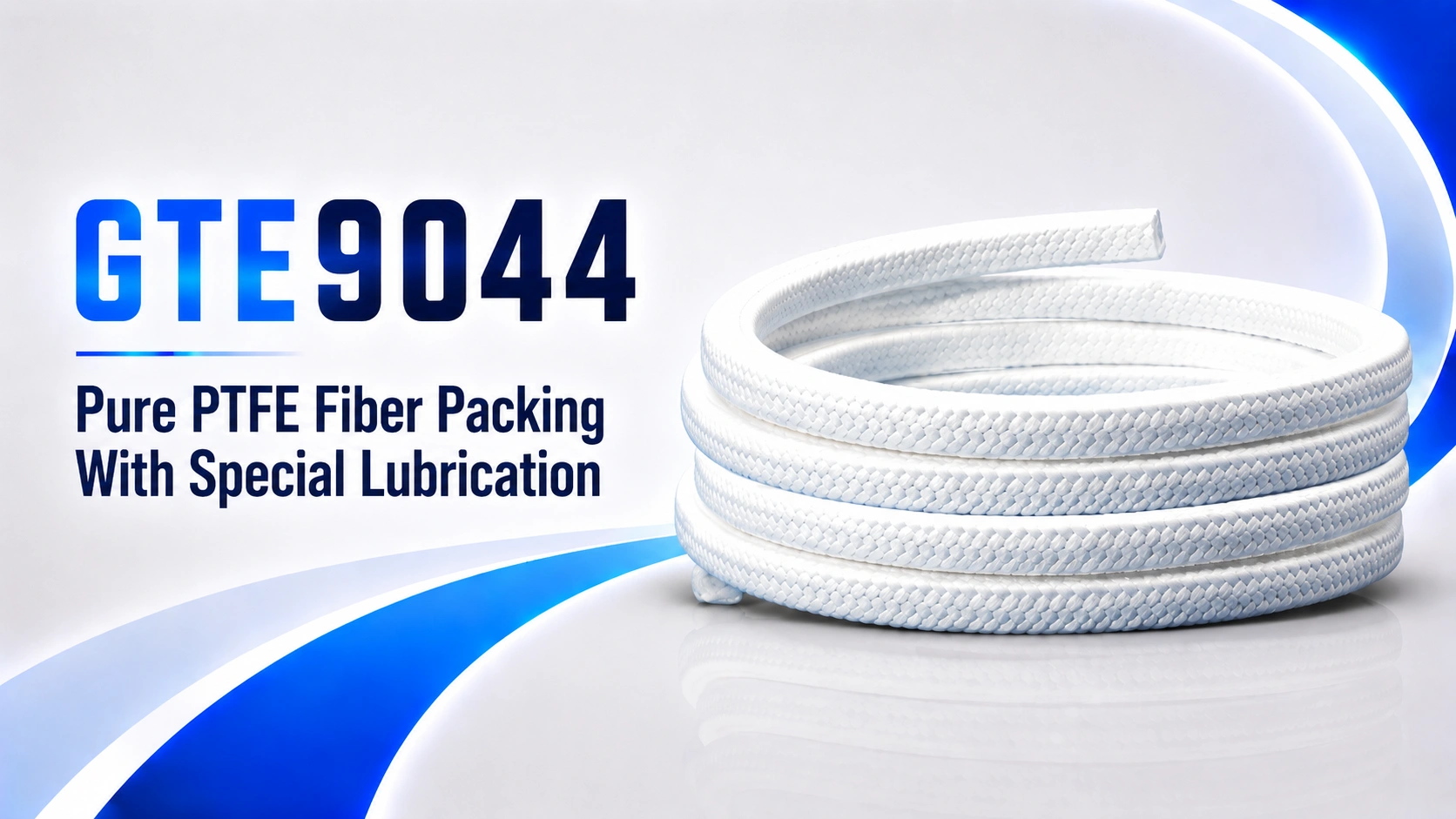

GTE 9044 Pure PTFE Packing With Special Lubrican
Made of pure PTFE yarn with lubrication.

Suitable for operations that involves serious chemicals and corrosive materials.
Dimension Spesification

Size  Length PER KG’s Length 2KG Length 5KG
3 mm 40 80 200
6 mm 11,8 23,6 59
8 mm 8,6 17,2 43
10 mm 5,5 11 27,5
12 mm 3,8 7,6 19
14 mm 2,8 5,6 14
16 mm 2,2 4,4 11
19 mm 1,5 3 7,5
22 mm 1,2 2,4 6
25 mm 0,9 1,8 4,5
30 mm 0,6 1,2 3
38 mm 0,4 0,8 2
Meters Meters Meters
P [bar]

to 15 Bar (Rotating) | To 100 Bar (Reciprocating) | To 180 Bar (Static)

pH

0 – 14

Speed

To 20 m/s

Temperature

-100 C to +250 C in steam

Package Size

2 KG, 5 KG
