GTE9046

Material :
PTFE Graphite Packing

Brand :

GTE

Made of High quality graphite PTFE yarn. Chemical and heat resistant. Applicable for operations that involves corrosive fluids, organic solvents, hot water, oil, etc.

Categories: , ,

* Shape

* Dimensions-round













* Dimensions-square













* Package-size



* Quantity

Length (Meters) - Optional

Share On

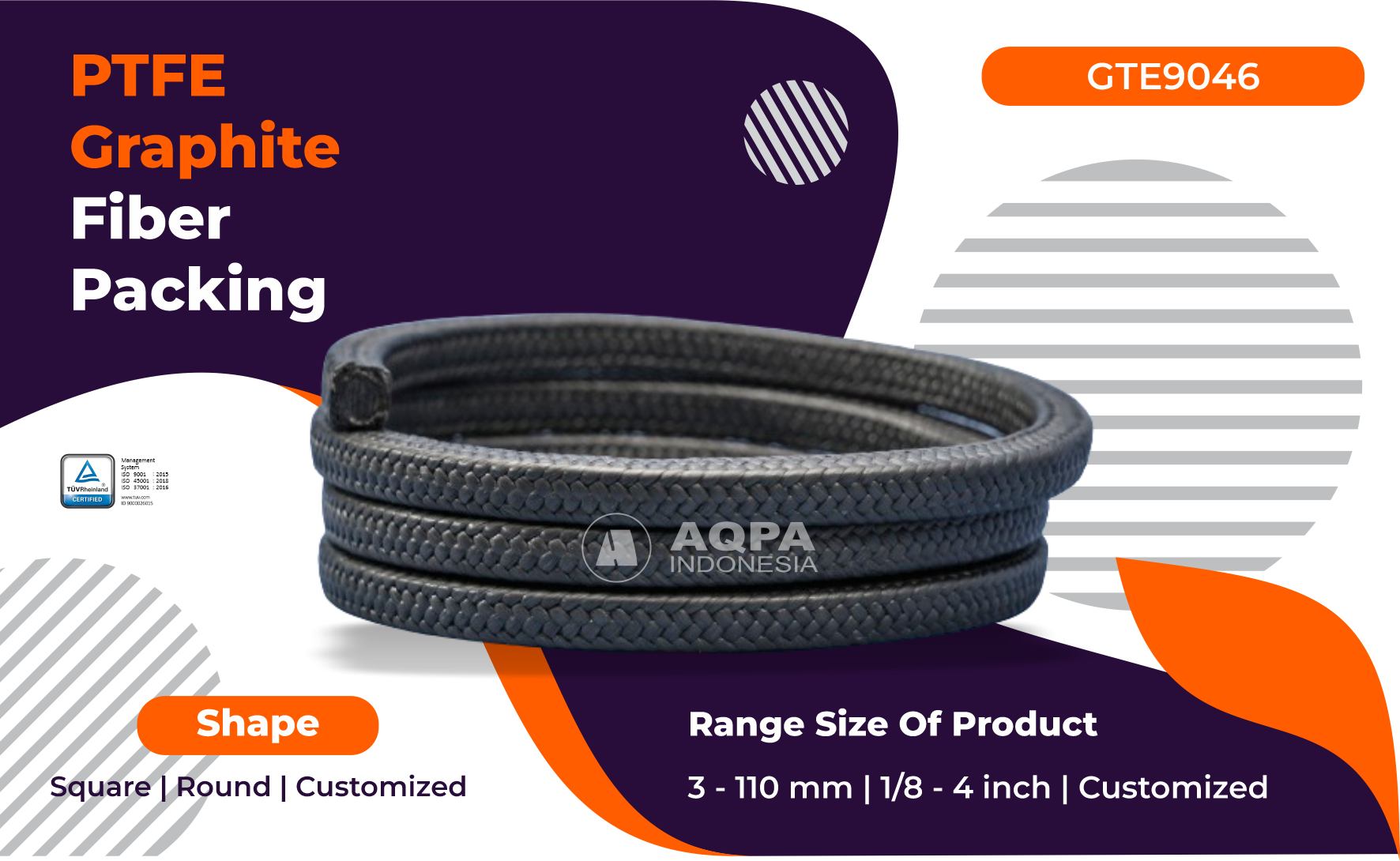

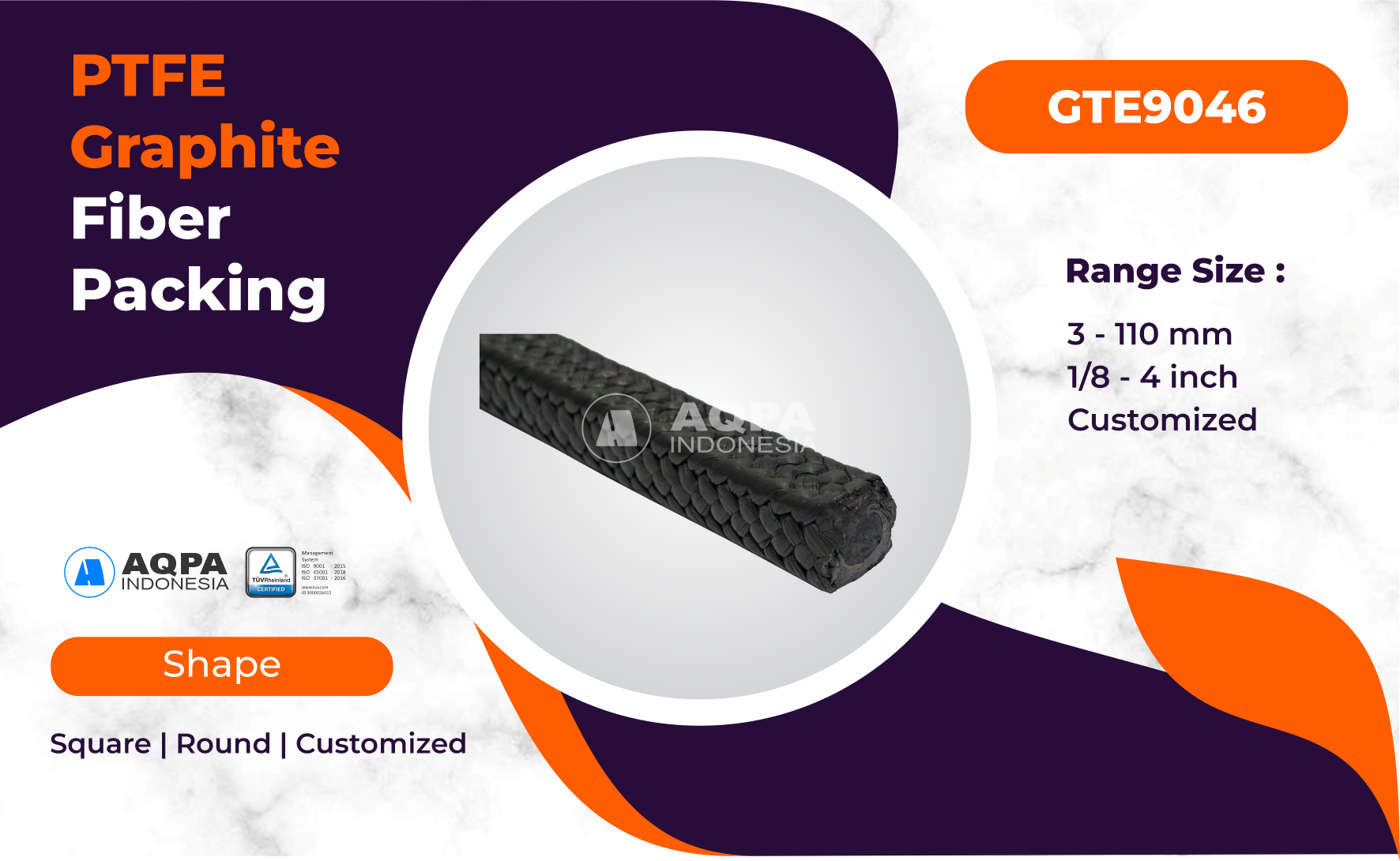

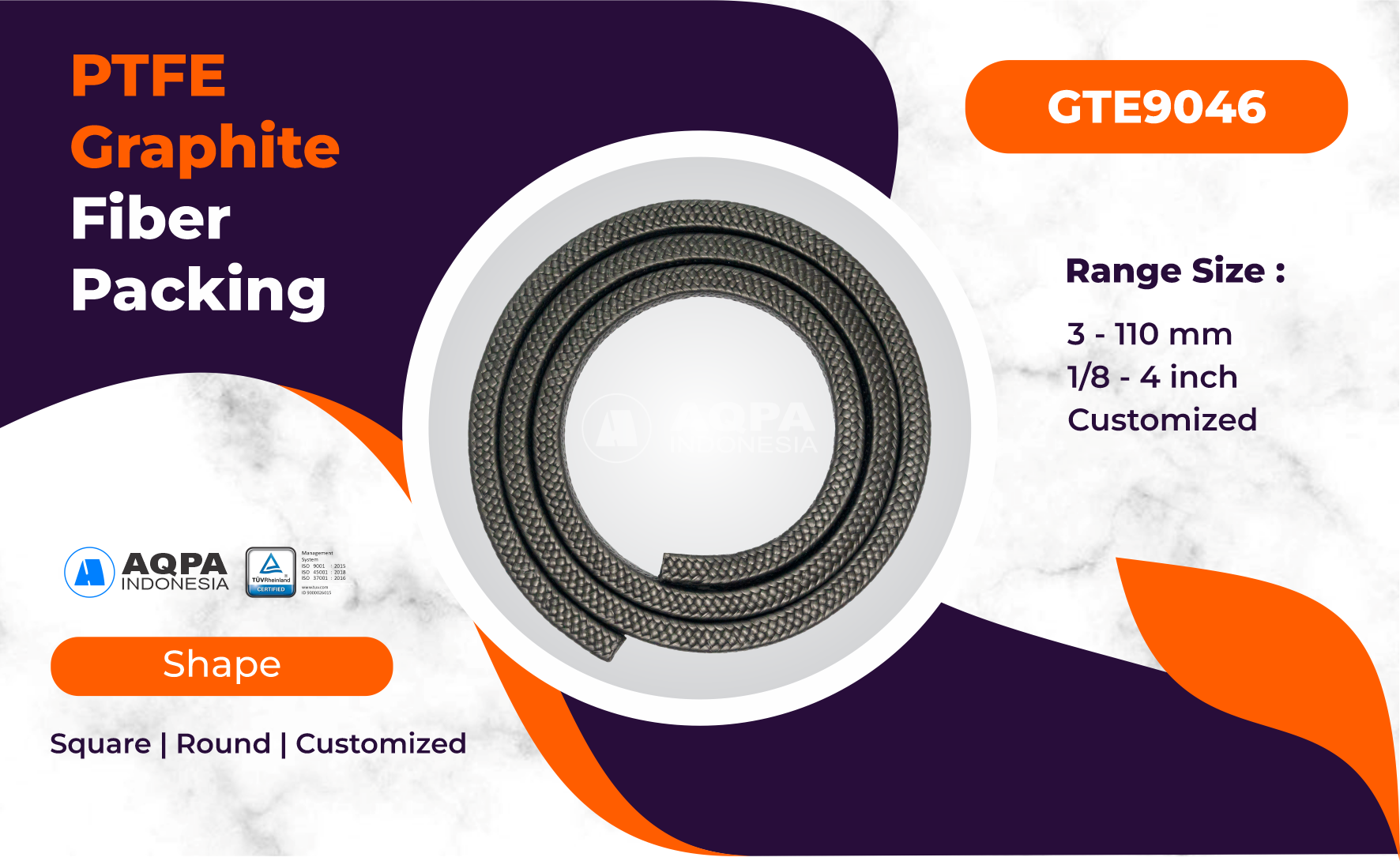

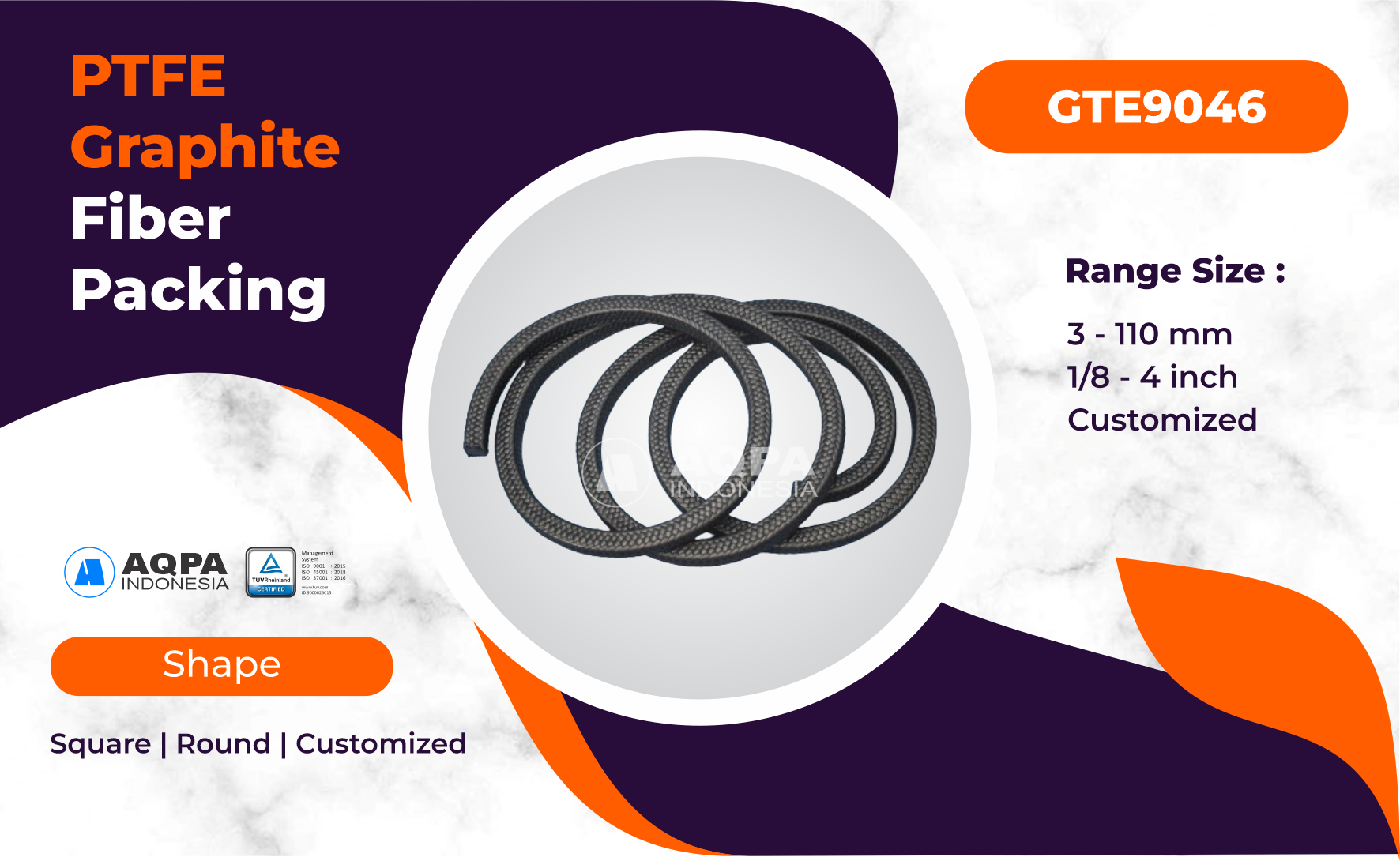

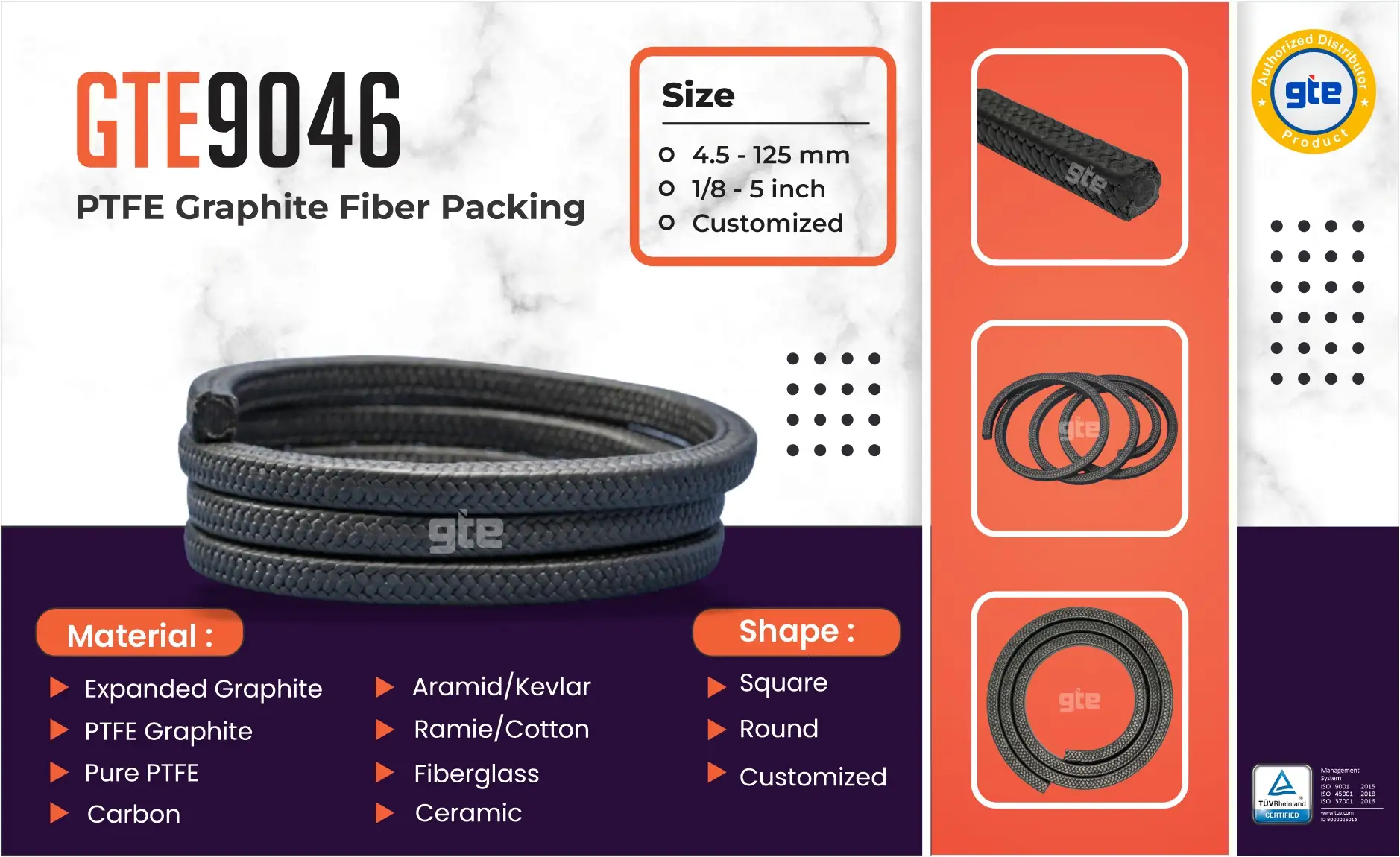

GTE 9046 PTFE Graphite Packing

Made of High quality graphite PTFE yarn. Chemical and heat resistant. Applicable for operations that involves corrosive fluids, organic solvents, hot water, oil, etc.
Dimension Spesification

Size  Length PER KG’s Length 2KG Length 5KG
3 mm 40 80 200
6 mm 11,6 23,2 58
8 mm 8 16 40
10 mm 5 10 25
12 mm 3,7 7,4 18,5
14 mm 2,8 5,6 14
16 mm 2,2 4,4 11
19 mm 1,5 3 7,5
22 mm 1,2 2,4 6
25 mm 0,9 1,8 4,5
30 mm 0,6 1,2 3
38 mm 0,4 0,8 2
Meters Meters Meters
P [bar]

20 Bar

pH

4 – 12

Speed

16 m/s

Temperature

Max 260° C

Package Size

2 KG, 5 KG
