GTE9058

Material :
PTFE/ GRAPHITE YARN WITH LUBRICATED PTFE YARN CORNER MODEL

Brand :

GTE



Carbon Fiber Packing with PTFE Dispersion Containing Graphite Particles

Structure : Graphite PTFE fiber yarn and lubricated PTFE yarns are braided to a packing in combination. It shows excellent chemical resistance, mechanic strength and self-lubrication

Categories: , ,

* Shape

* Dimensions-round













* Dimensions-square













* Package-size



* Quantity

Length (Meters) - Optional

Share On

Technical Data Sheet

GTE9058

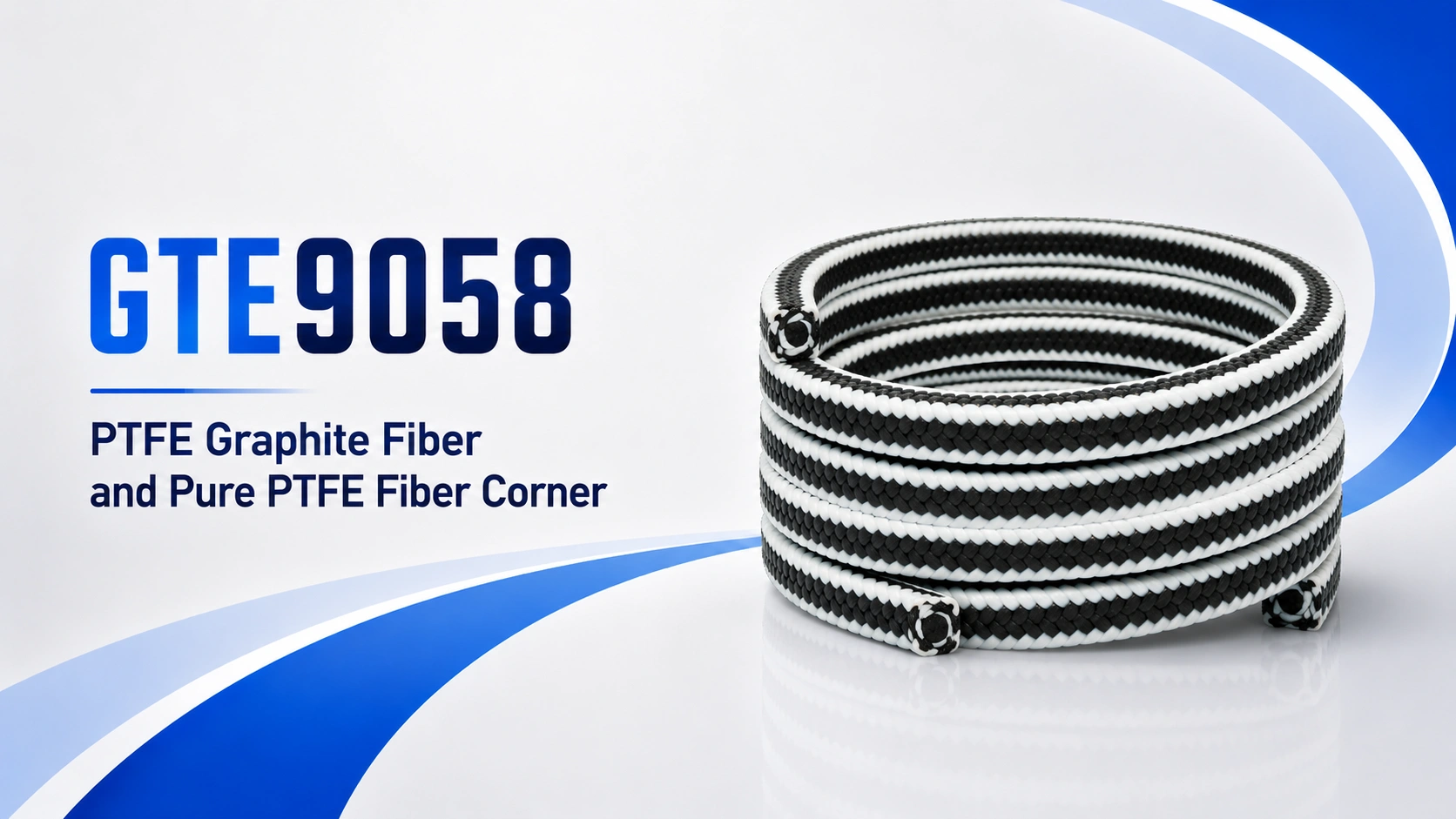

PTFE/GRAPHITE YARN WITH LUBRICATED PTFE YARN CORNER MODEL.

Graphite PTFE fiber yarn and lubricated PTFE yarns are braided to a packing in combination. It shows excellent chemical resistance, mechanic strength and self-lubrication.

Suitable for corrosive fluid, organic solvents, chemicals rotary machine, rotary pumps, reciprocating pumps, agitator, etc.

Construction  :    PTFE Graphite Fiber & Pure PTFE Fiber Corner

Temperature  :    Max 280°C

pH Range       :    0 – 14

Shaft Speed   :    To 20 m/s

Pressure          :    To 20 bar (rotating)

P [bar]

To 20 bar (rotating)

pH

0 – 14

Speed

To 20 m/s

Temperature

max 280°C

Dimensions Round

Size 03 mm, Size 38 mm, Size 10 mm, Size 12 mm, Size 14 mm, Size 16 mm, Size 19 mm, Size 22 mm, Size 30 mm, Size 25 mm, Size 08 mm, Size 06 mm

Dimensions Square

Size 03 mm x 03 mm, Size 06 mm x 06 mm, Size 08 mm x 08 mm, Size 10 mm x 10 mm, Size 12 mm x 12 mm, Size 14 mm x 14 mm, Size 16 mm x 16 mm, Size 19 mm x 19 mm, Size 22 mm x 22 mm, Size 25 mm x 25 mm, Size 30 mm x 30 mm, Size 38 mm x 38 mm

Package Size

2 KG, 5 KG
