GTE9051

Material :
PTFE Impregnated Carbonized Fiber Packing

Brand :

GTE

Structure : Pre-oxidized fiber has high strength and good thermal conductivity and PTFE makes the packing have excellent self-lubrication.

Categories: , ,

* Shape

* Dimensions-round













* Dimensions-square













* Package-size



* Quantity

Length (Meters) - Optional

Share On

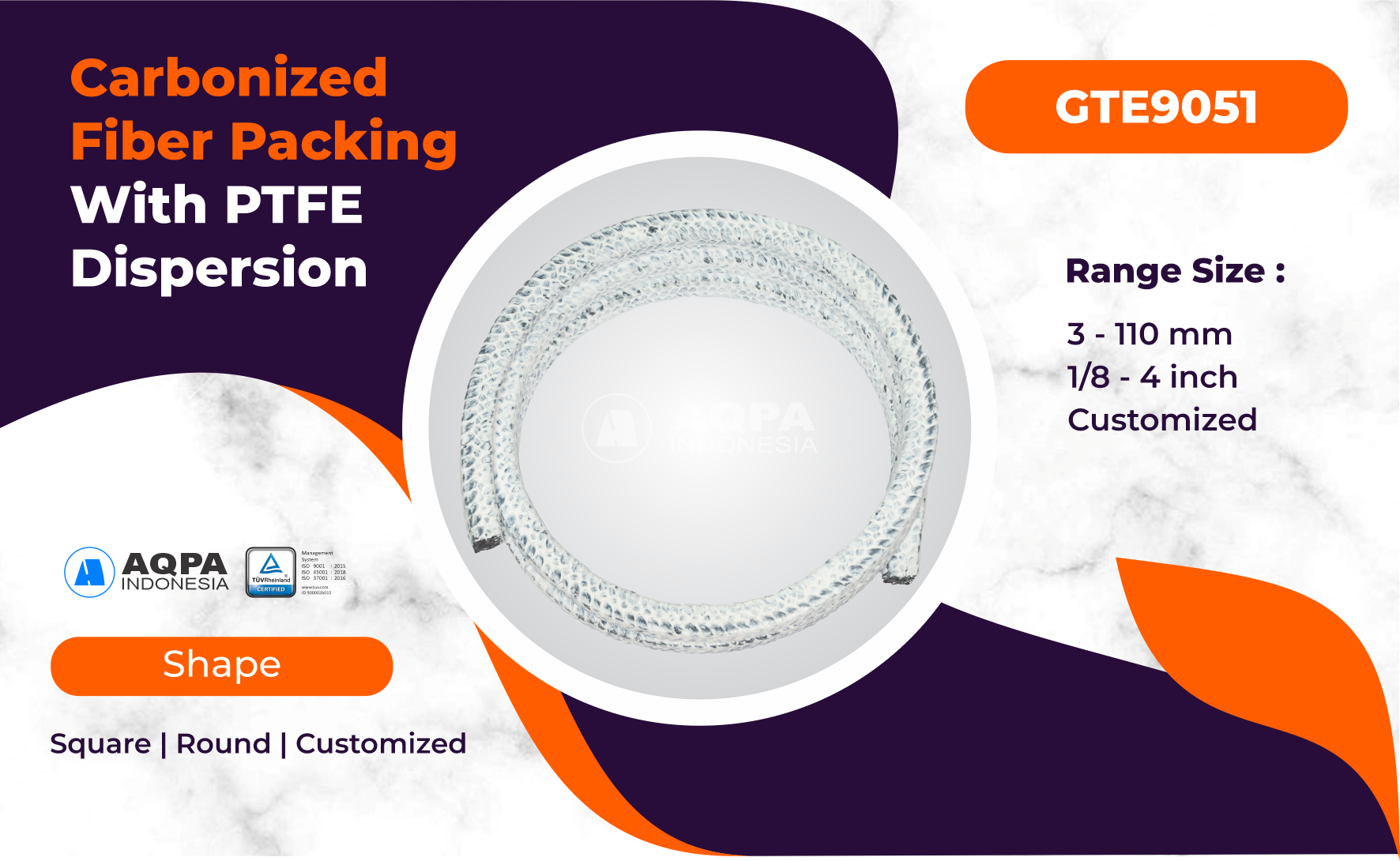

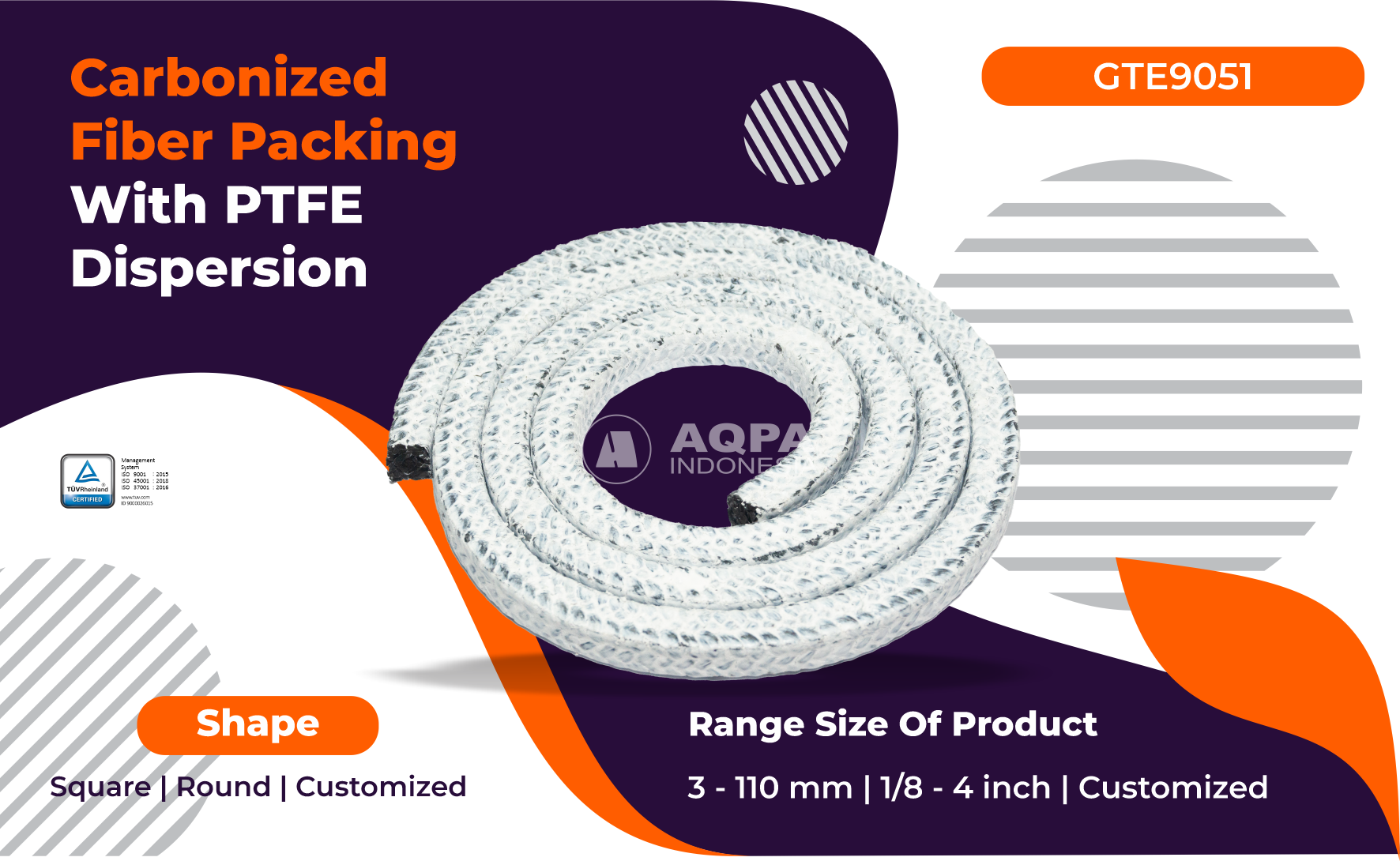

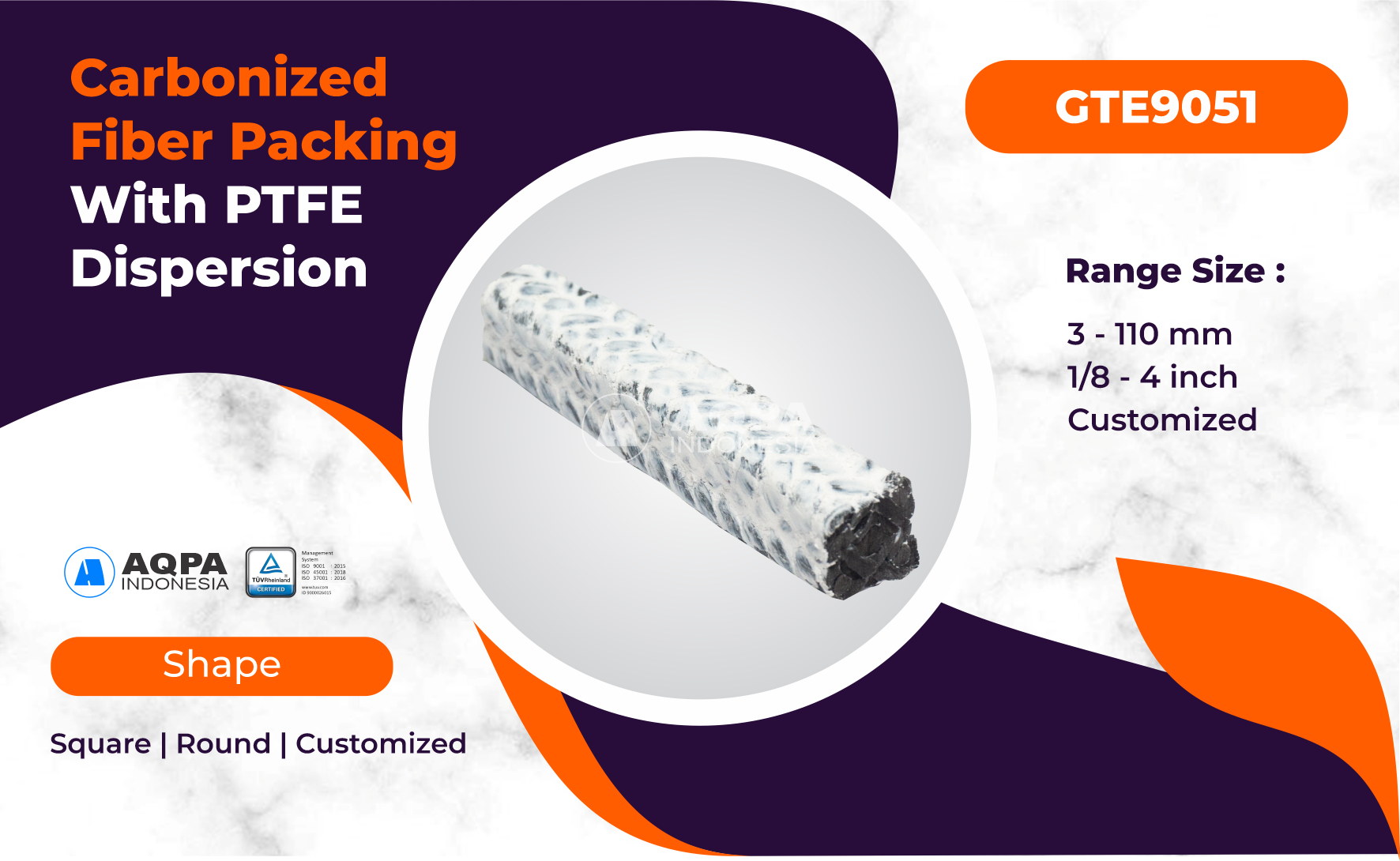

GTE 9051 PTFE Impregnated Carbonized Fiber Packing

Application : Used in general applications and general services involving high temperature and high pressure in valves, pumps and sealing application. Suitable for steam, oil, bleach, solvents, acids, alkalis, and other products.

Dimension Spesification

Size Length PER KG’sLength 2KGLength 5KG
3 mm50,4100,8252
6 mm12,625,263
8 mm7,414,837
10 mm4,79,423,5
12 mm3,67,218
14 mm2,65,213
16 mm2,14,210,5
19 mm1,537,5
22 mm1,22,46
25 mm0,91,84,5
30 mm0,71,43,5
38 mm0,512,5
 MetersMetersMeters



P [bar]

50 Bar

pH

2 – 12

Speed

10 m/s

Temperature

Max 200 C

Package Size

2 KG, 5 KG
