GTE9045

Material :

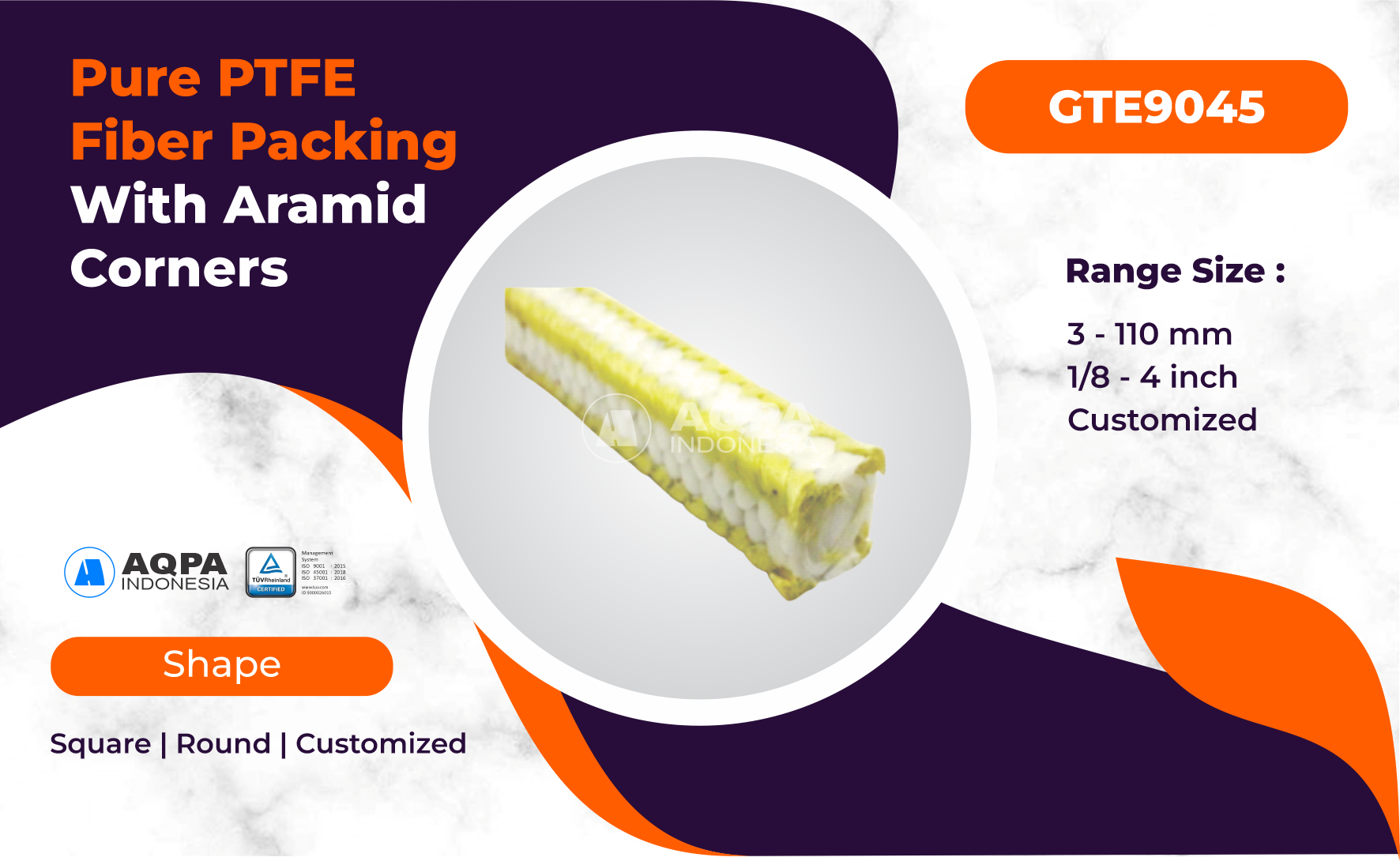

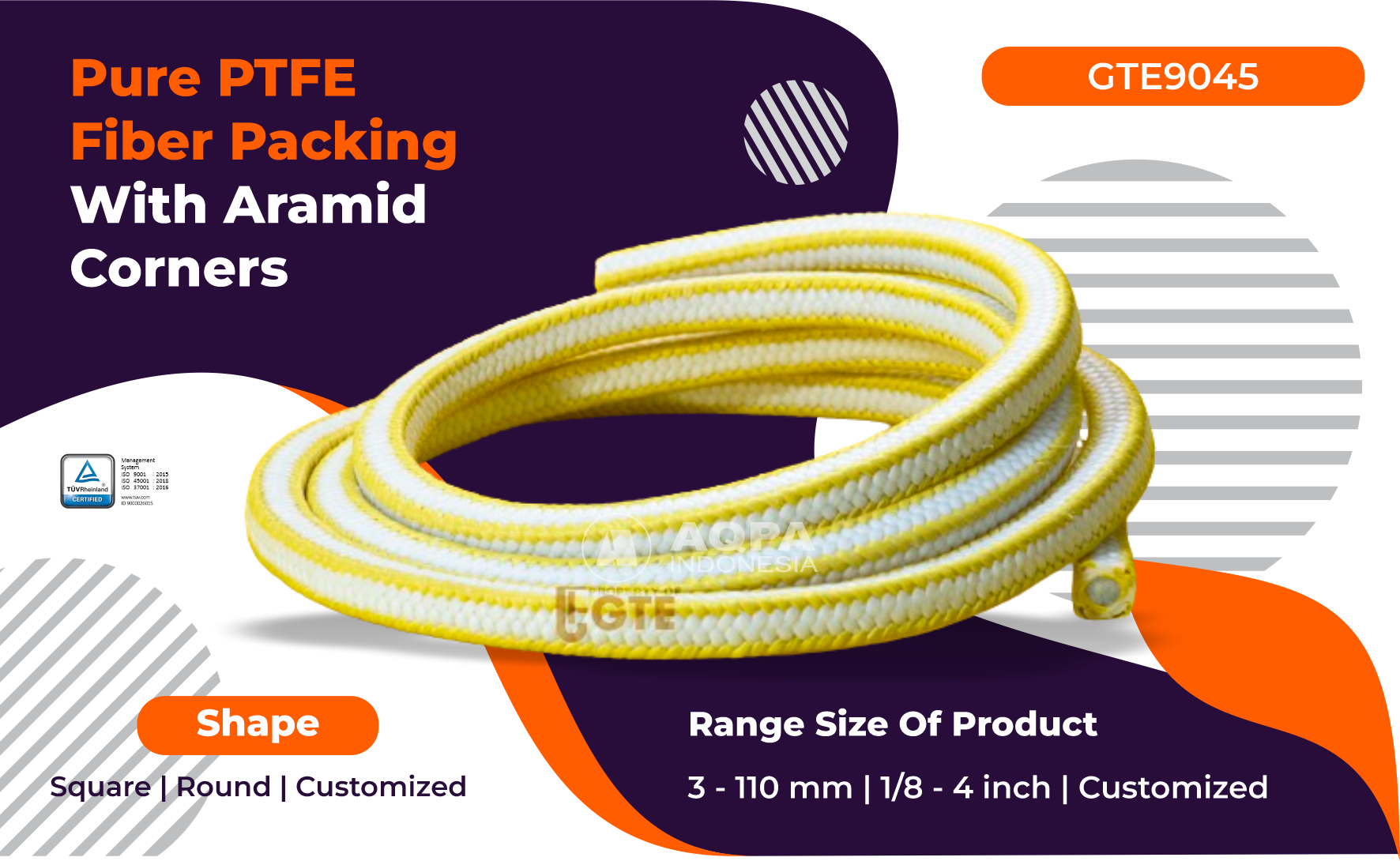

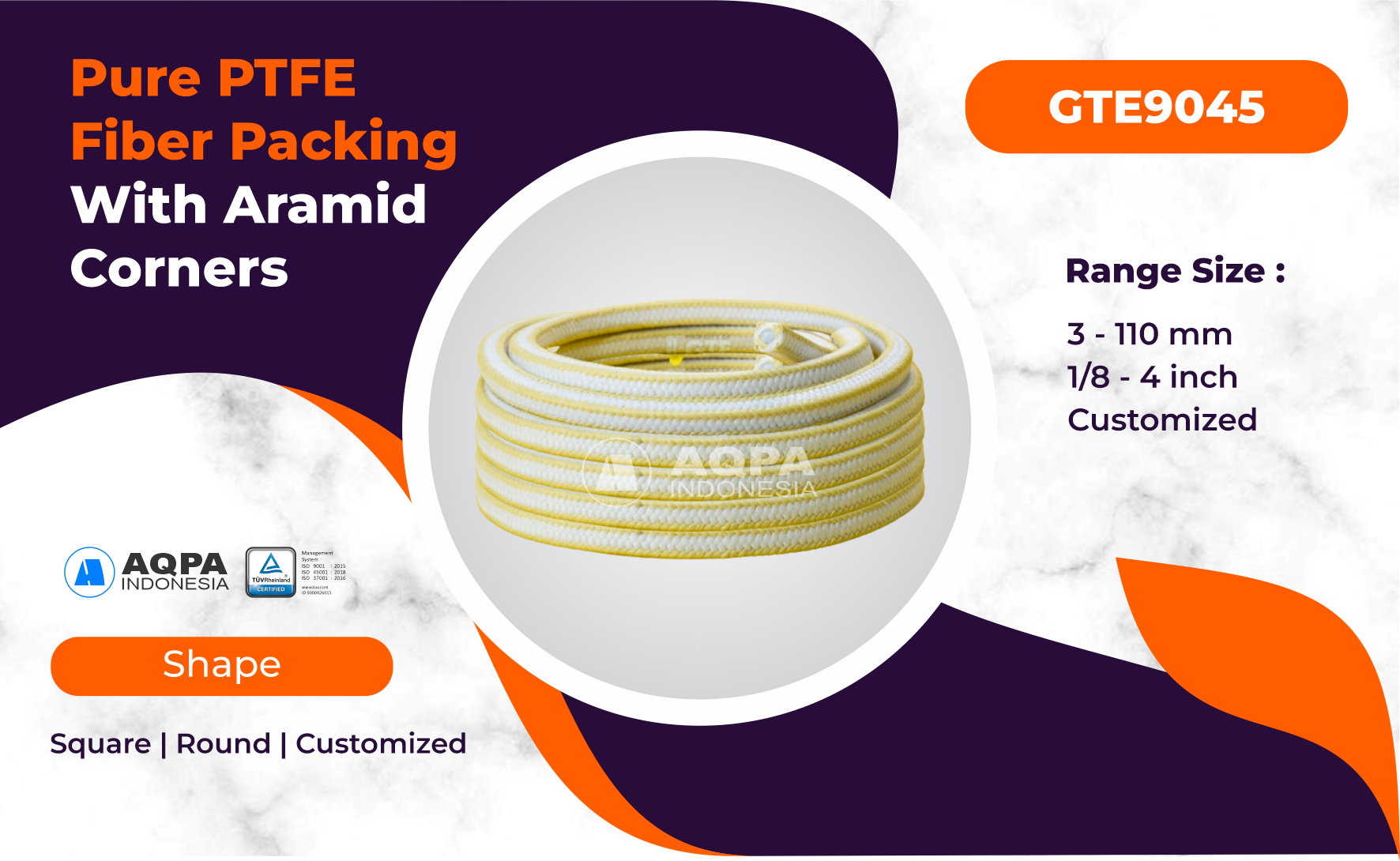

Pure PTFE Fiber Packing With Aramid Corners

Brand :

GTE



Structure : Combination of pure white PTFE fiber and Aramid fiber at the corner tracts to reduce extrusion and increase strength.

Categories: , ,

* Shape

* Dimensions-round













* Dimensions-square













* Package-size



* Quantity

Length (Meters) - Optional

Share On

Technical Data Sheet

GTE9045

PTFE PACKING WITH ARAMID FIBER CORNERS IS A MULTI-YARN PACKING, THE CORNERS OF PACKING ARE MADE OF ARAMID FIBER YARNS. IMPREGNATED WITH PTFE, THE FRICTION FACES ARE MADE OF PURE PTFE THREAD. IT IS PRE LUBRICATED WITH SILICONE OIL.

Combination of pure white PTFE fiber and Aramid fiber at the corner tracts to reduce extrusion and increase strength.

Recommended for caustics, mild acids, heavy chemicals, gases, solvents, oil, general application & ammonia carbonate services can be used in food application.

Construction  :    Pure PTFE Fiber Packing With Aramid Corners

Temperature  :    -80°C To + 280°C

pH Range       :    2 – 12

Shaft Speed   :   To 12 m/s

Pressure          :   To 20 bar (rotating)

                              To 100 bar (reciprocating)

                              To 150 bar (static)

P [bar]

18 Bar

pH

1 – 12

Temperature

-80 C to +280 C in steam

Speed

To 22 m/s

Dimensions Square

Size 03 mm x 03 mm, Size 06 mm x 06 mm, Size 08 mm x 08 mm, Size 10 mm x 10 mm, Size 12 mm x 12 mm, Size 14 mm x 14 mm, Size 16 mm x 16 mm, Size 19 mm x 19 mm, Size 22 mm x 22 mm, Size 25 mm x 25 mm, Size 30 mm x 30 mm, Size 38 mm x 38 mm

Package Size

2 KG, 5 KG
