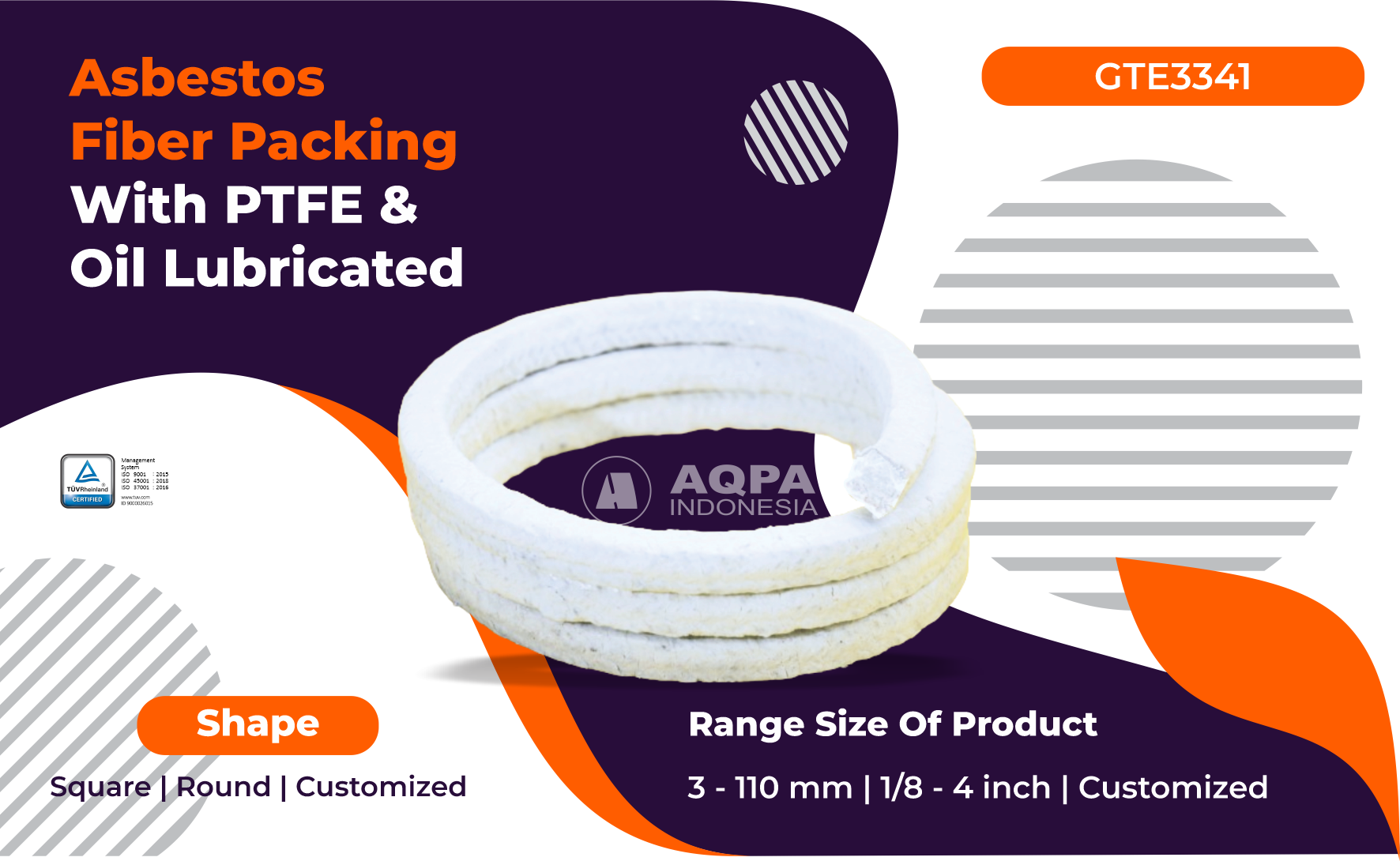

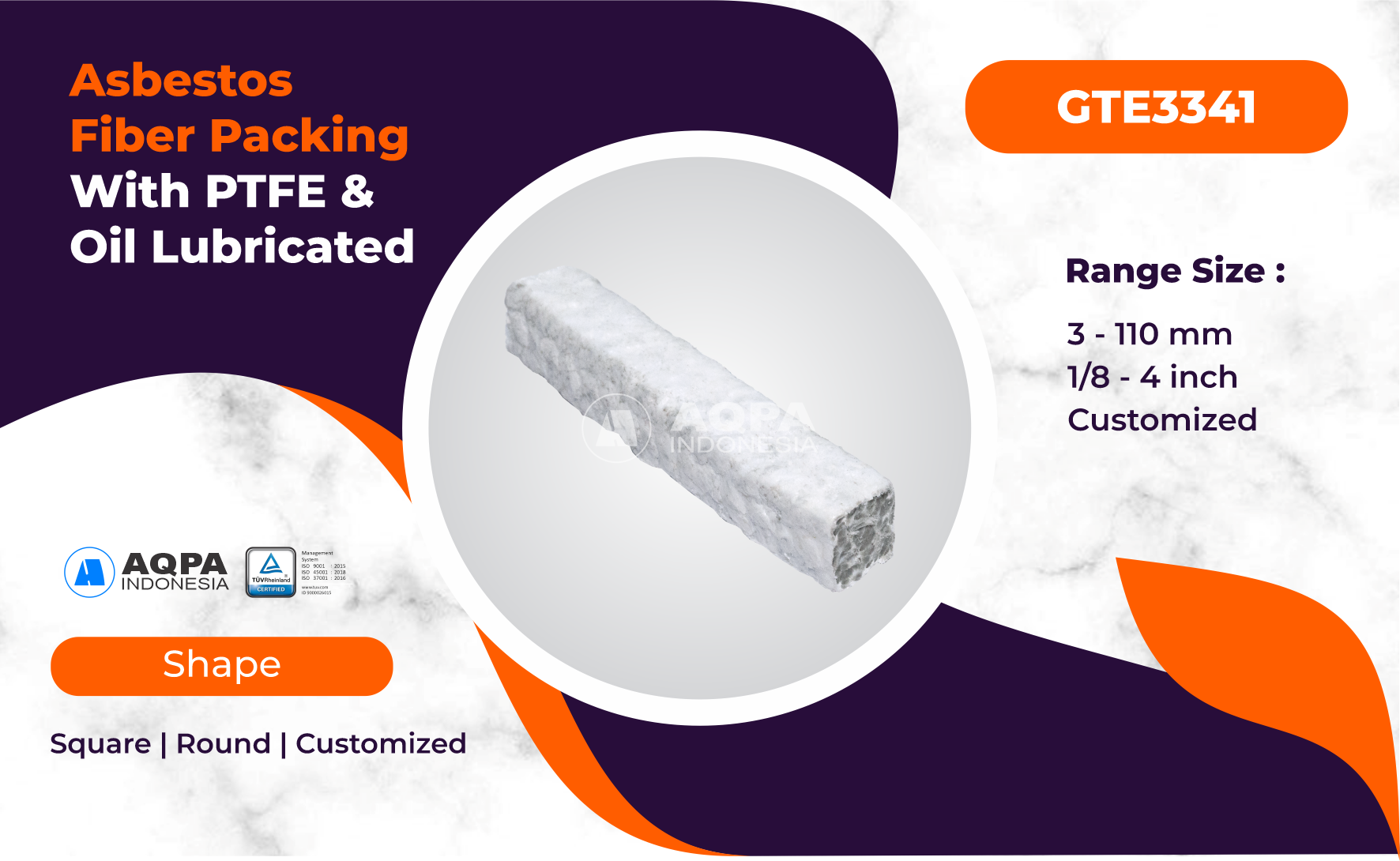

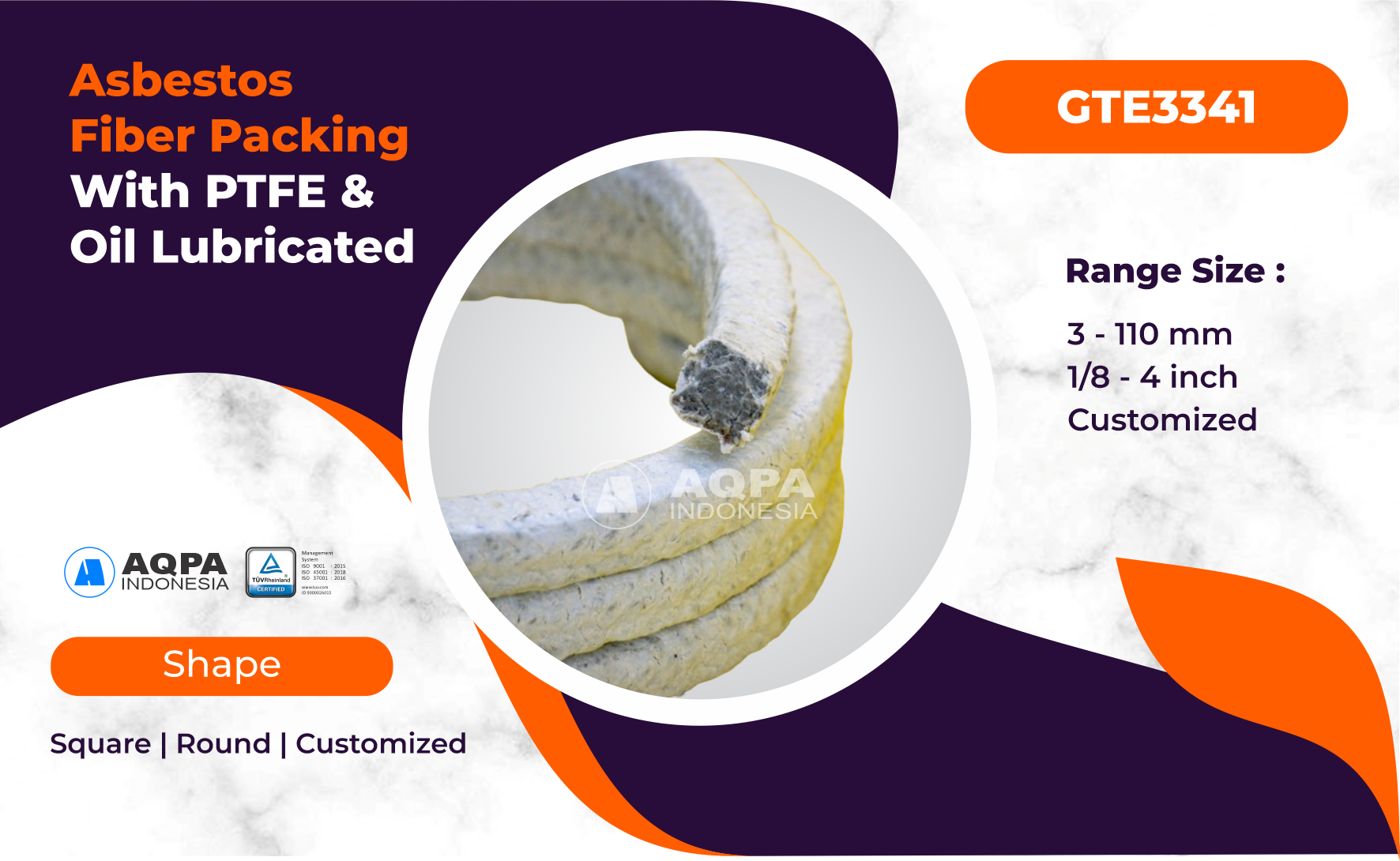

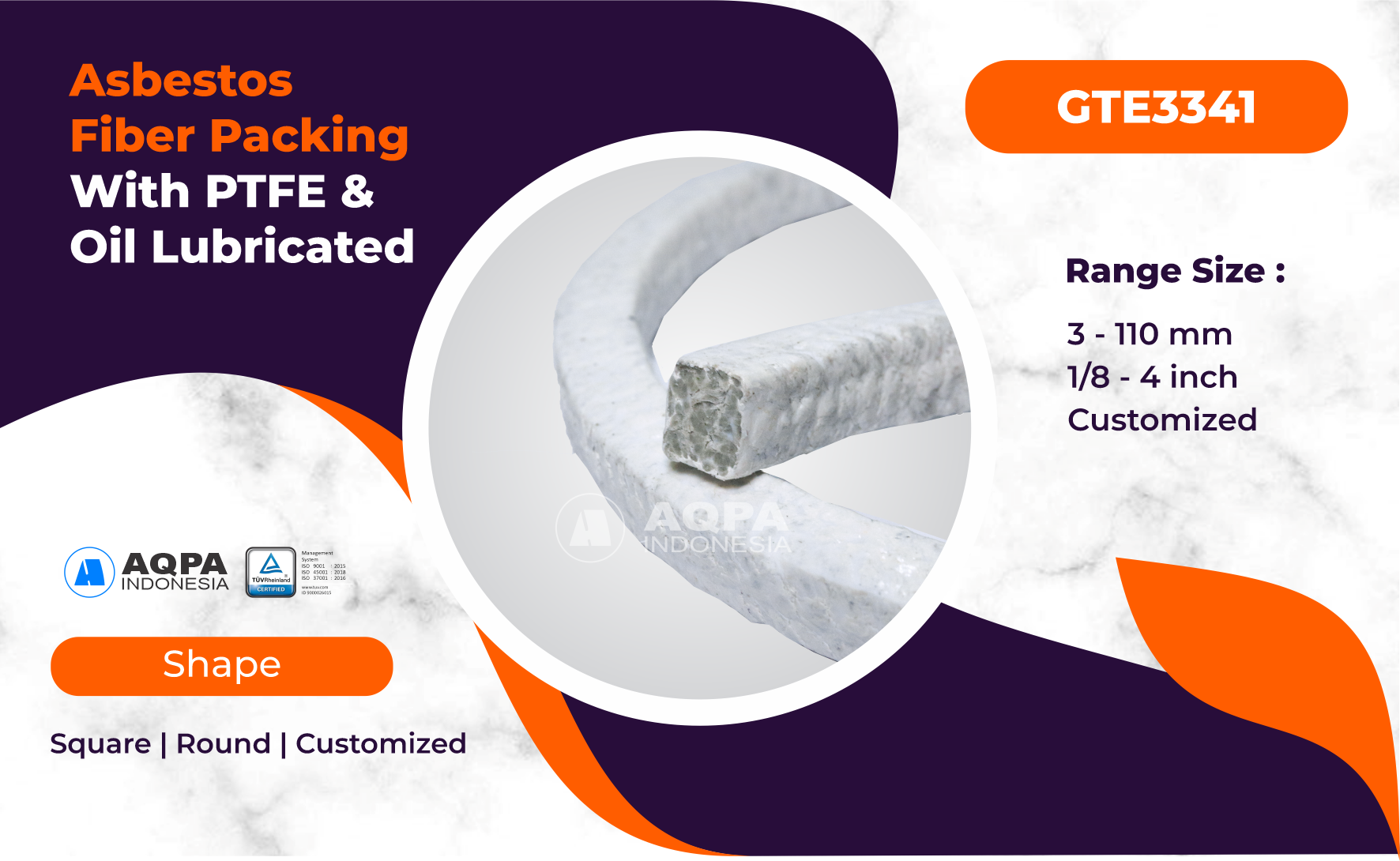

GTE3341

Material :
Asbetos Packing with PTFE & Oil Impregnation

Brand :

GTE

Made of high quality asbestos yarn impregnated with PTFE  dispersion and white oil. Suitable for general applications especially large rotary pump with medium pressure

Categories: , ,

* Shape

* Dimensions-round













* Dimensions-square













* Package-size



* Quantity

Length (Meters) - Optional

Share On

GTE 3341 Asbetos Packing with PTFE & Oil Impregnation
Made of high quality asbestos yarn impregnated with PTFE  dispersion and white oil. Suitable for general applications especially large rotary pump with medium pressure.

Dimension Spesification

Size  Length PER KG’s Length 2KG Length 5KG
3 mm 44,8 89,6 224
6 mm 12,5 25 62,5
8 mm 7,2 14,4 36
10 mm 4,8 9,6 24
12 mm 3,7 7,4 18,5
14 mm 3 6 15
16 mm 2,2 4,4 11
19 mm 1,6 3,2 8
22 mm 1,1 2,2 5,5
25 mm 1 2 5
30 mm 0,7 1,4 3,5
38 mm 0,4 0,8 2
Meters Meters Meters
P [bar]

20 Bar

pH

2 – 10

Speed

10 m/s

Temperature

E Max 260 C

Package Size

2 KG, 5 KG
