GTE9052

Material :
Lubricated PTFE Impregnated Carbonized Packing

Brand :

GTE

Made of high quality carbon fiber. It possess excellent heat and chemical resistance.

Its self-lubricating quality makes it durable. Applicable for general applications.

Categories: , ,

* Shape

* Dimensions-round













* Dimensions-square













* Package-size



* Quantity

Length (Meters) - Optional

Share On

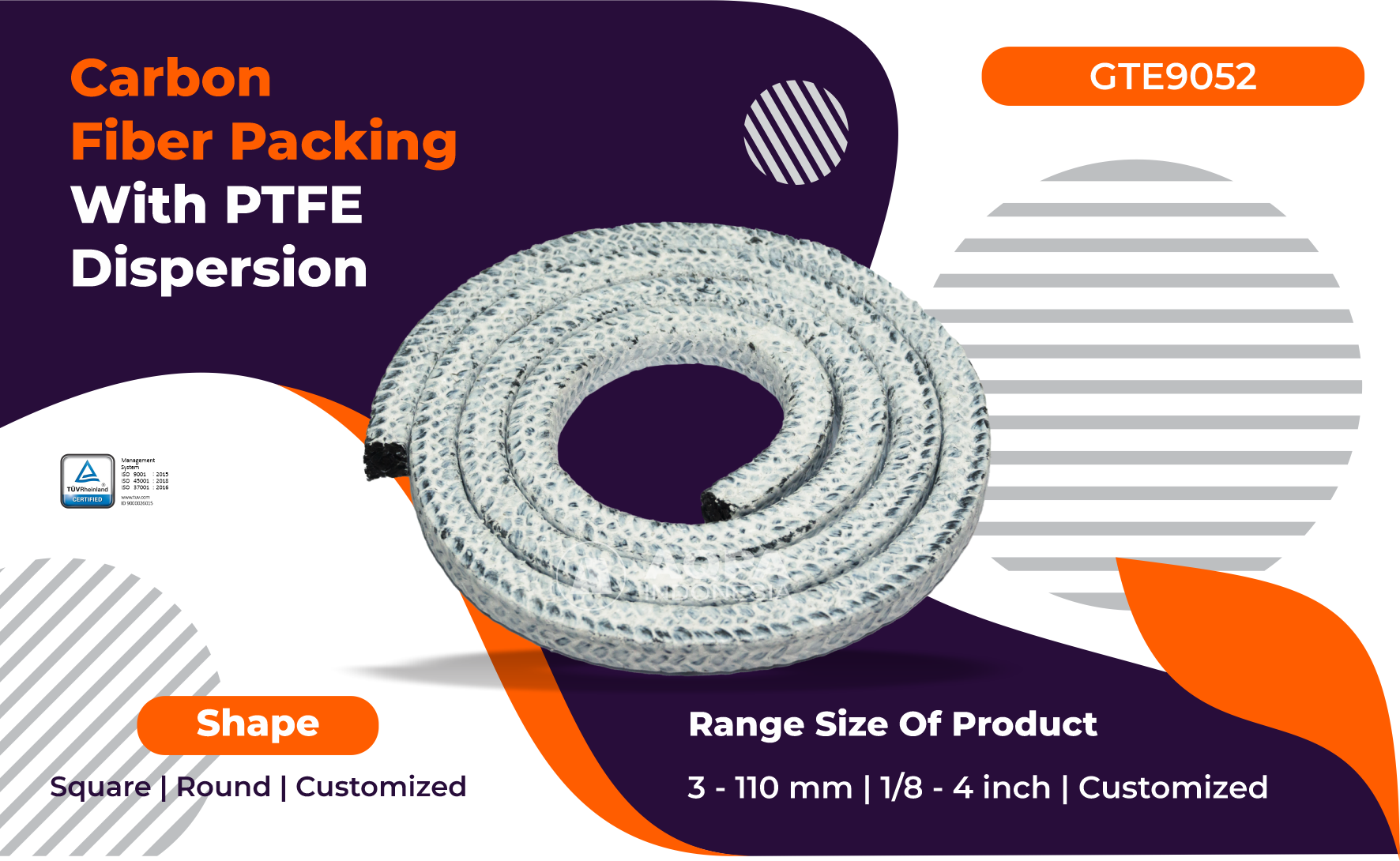

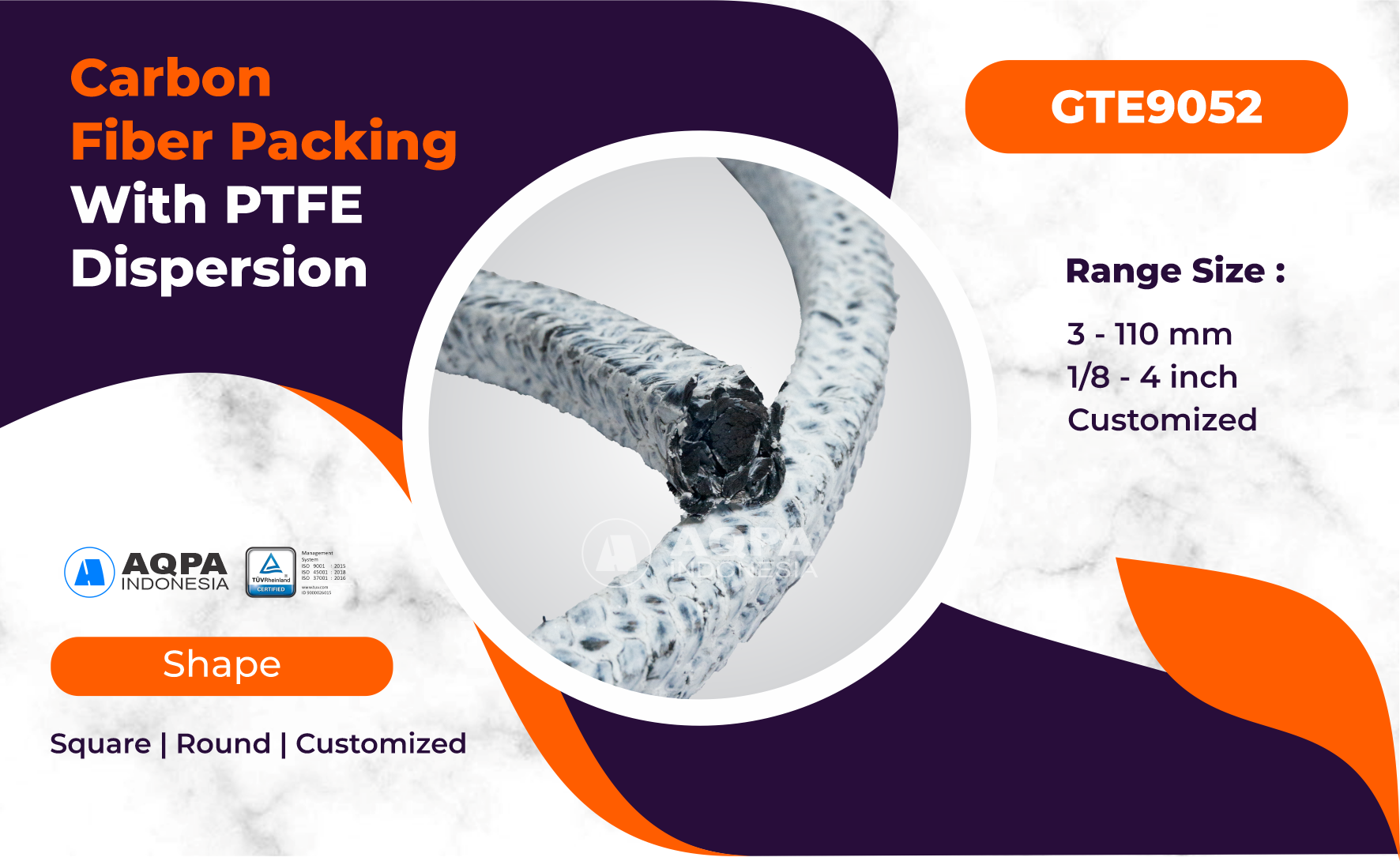

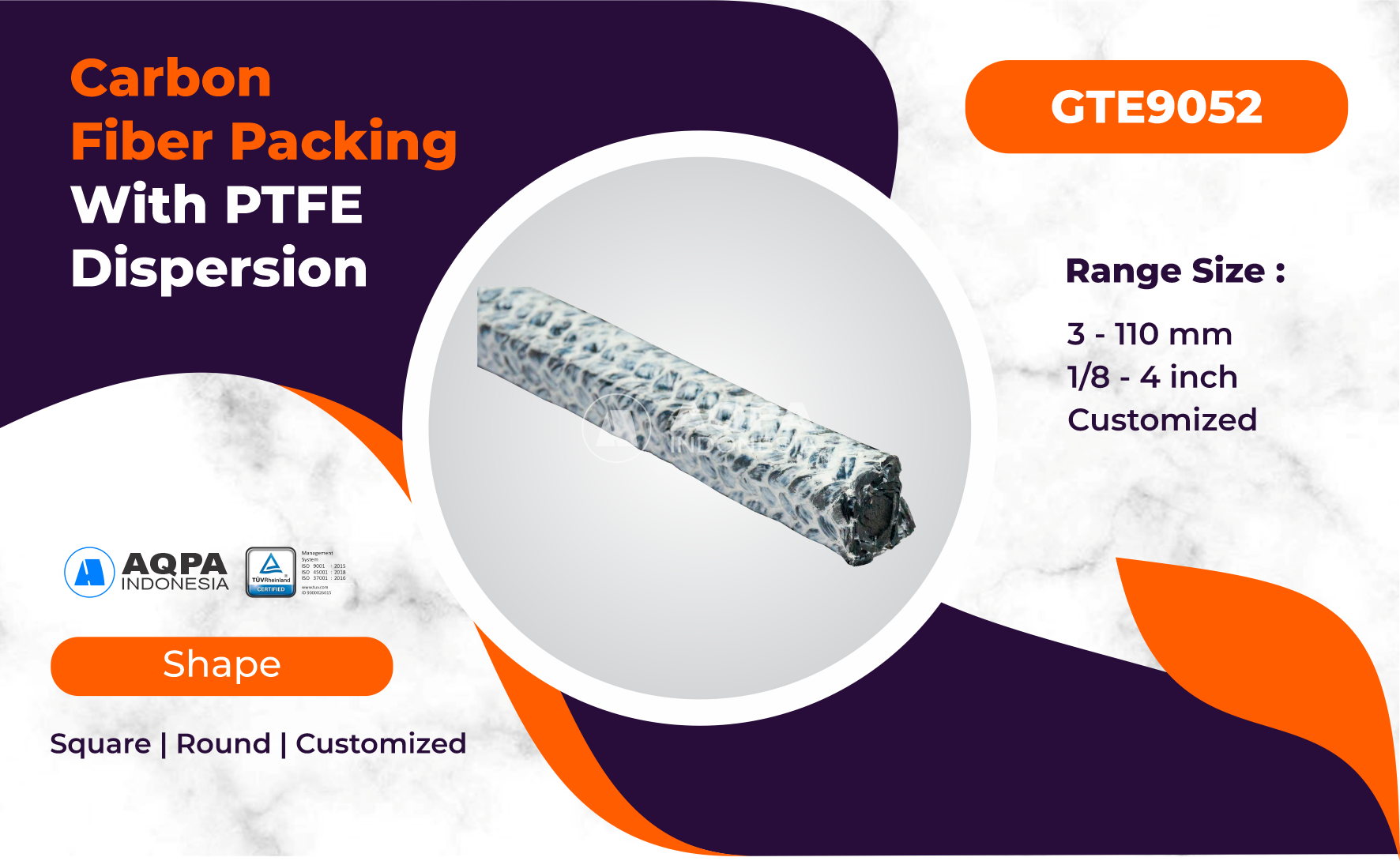

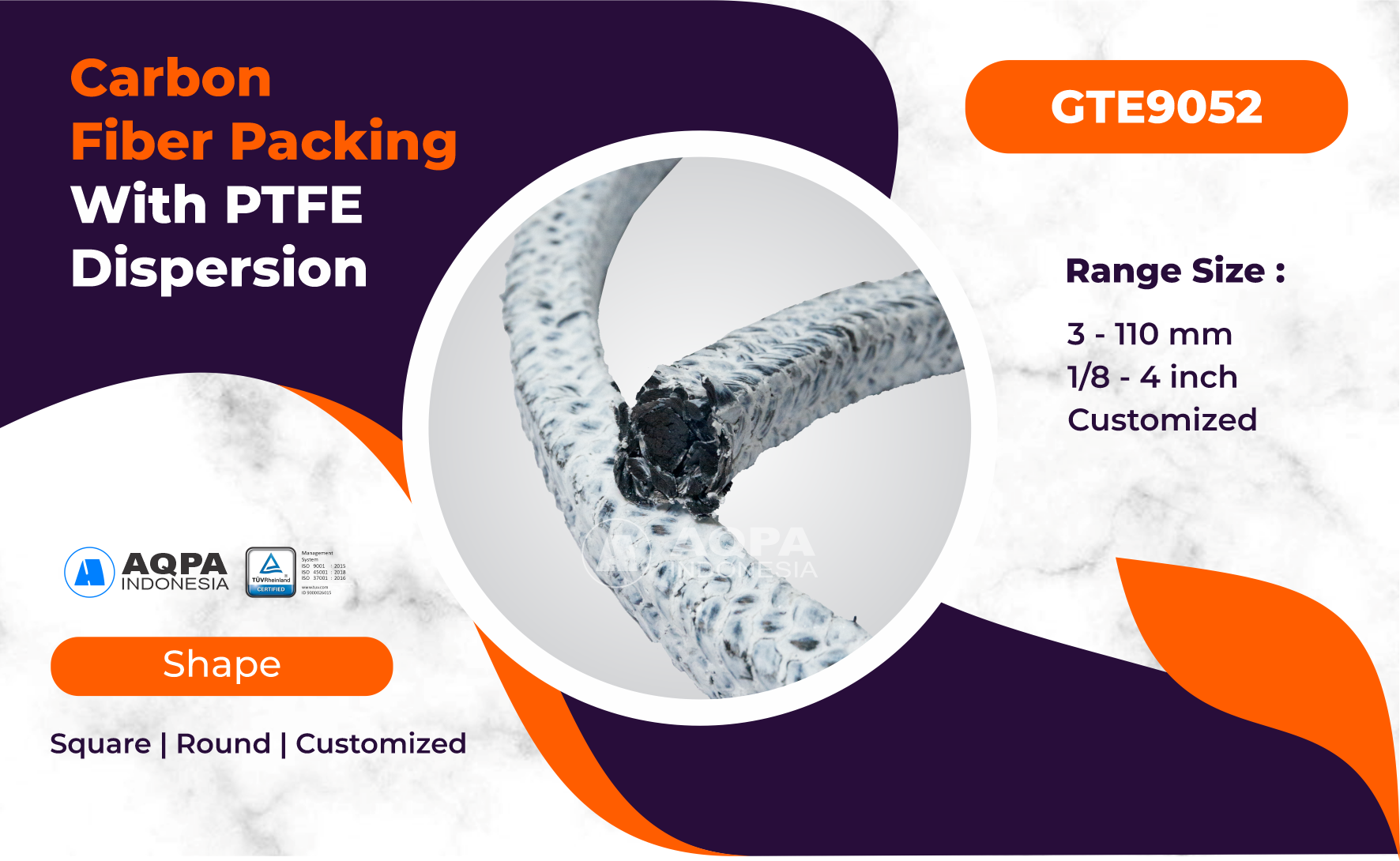

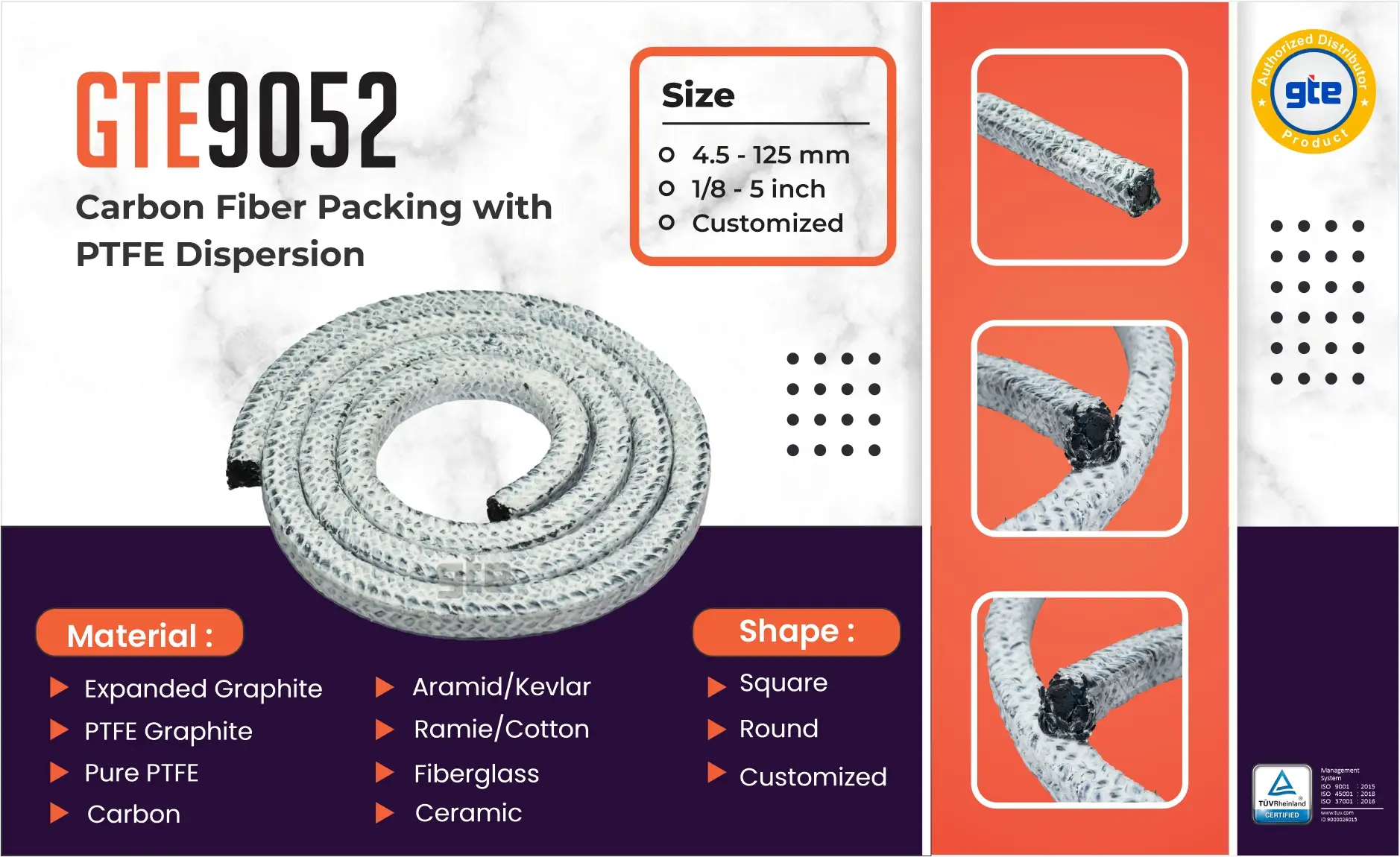

GTE 9052 Lubricated PTFE Impregnated Carbonized Packing
Made of high quality carbon fiber. It possess excellent heat and chemical resistance.
Its self-lubricating quality makes it durable. Applicable for general applications.

Dimension Spesification

Size  Length PER KG’s Length 2KG Length 5KG
3 mm 44,8 89,6 224
6 mm 12,5 25 62,5
8 mm 7,2 14,4 36
10 mm 4,8 9,6 24
12 mm 3,7 7,4 18,5
14 mm 3 6 15
16 mm 2,2 4,4 11
19 mm 1,6 3,2 8
22 mm 1,1 2,2 5,5
25 mm 1 2 5
30 mm 0,7 1,4 3,5
38 mm 0,4 0,8 2
Meters Meters Meters
P [bar]

50 – 200 Bar

pH

2 – 12

Speed

To 20 m/s

Temperature

Max 600 C

Package Size

2 KG, 5 KG
