GTE3320

Material :
Asbes Graphite

Brand :

GTE

Mede of the mixture of asbestos yarn and silver graphite powder. Generally used for high speed rotating and reciprocating spindles, and static.

Categories: , ,

* Shape

* Dimensions-round













* Dimensions-square













* Package-size



* Quantity

Length (Meters) - Optional

Share On

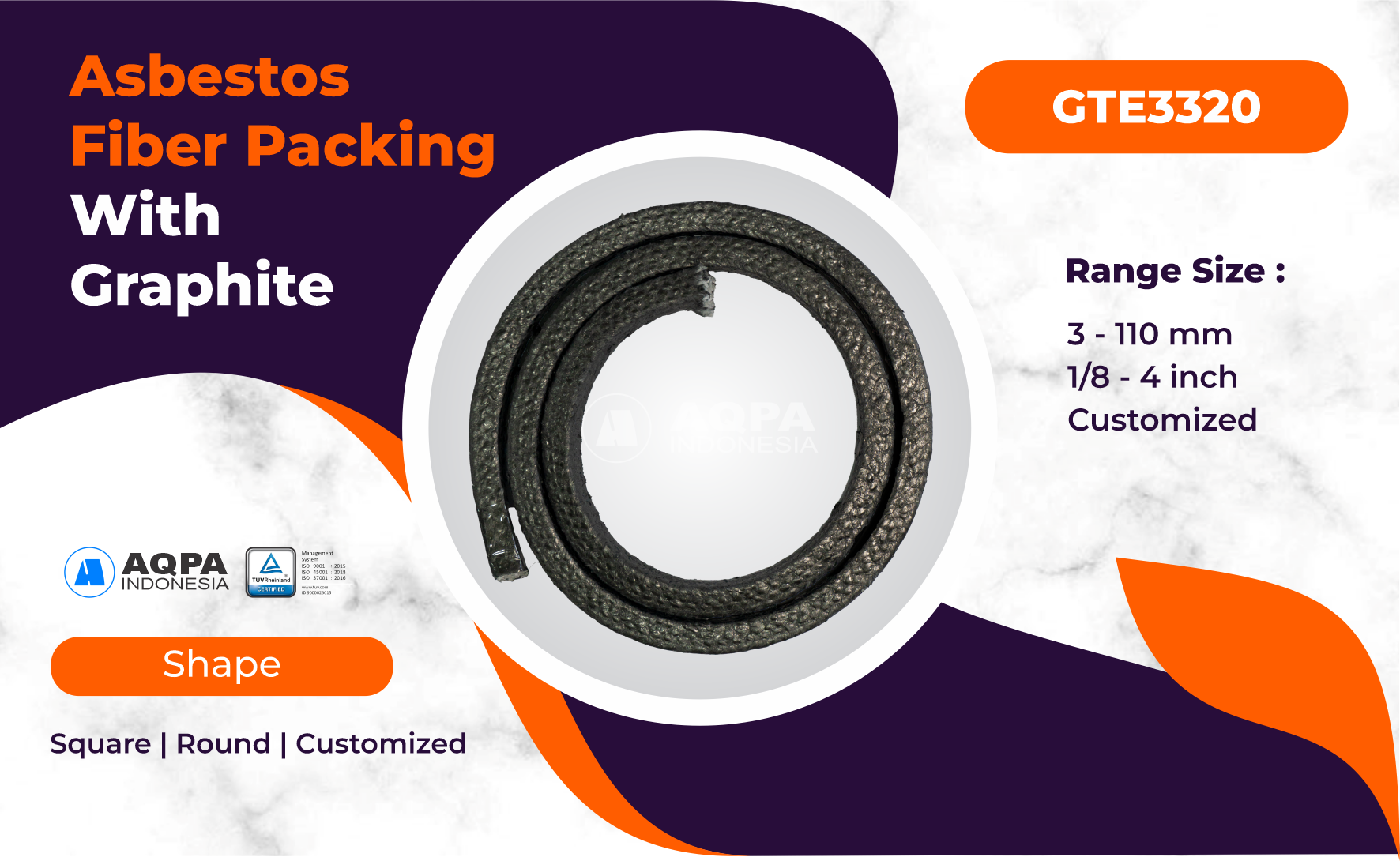

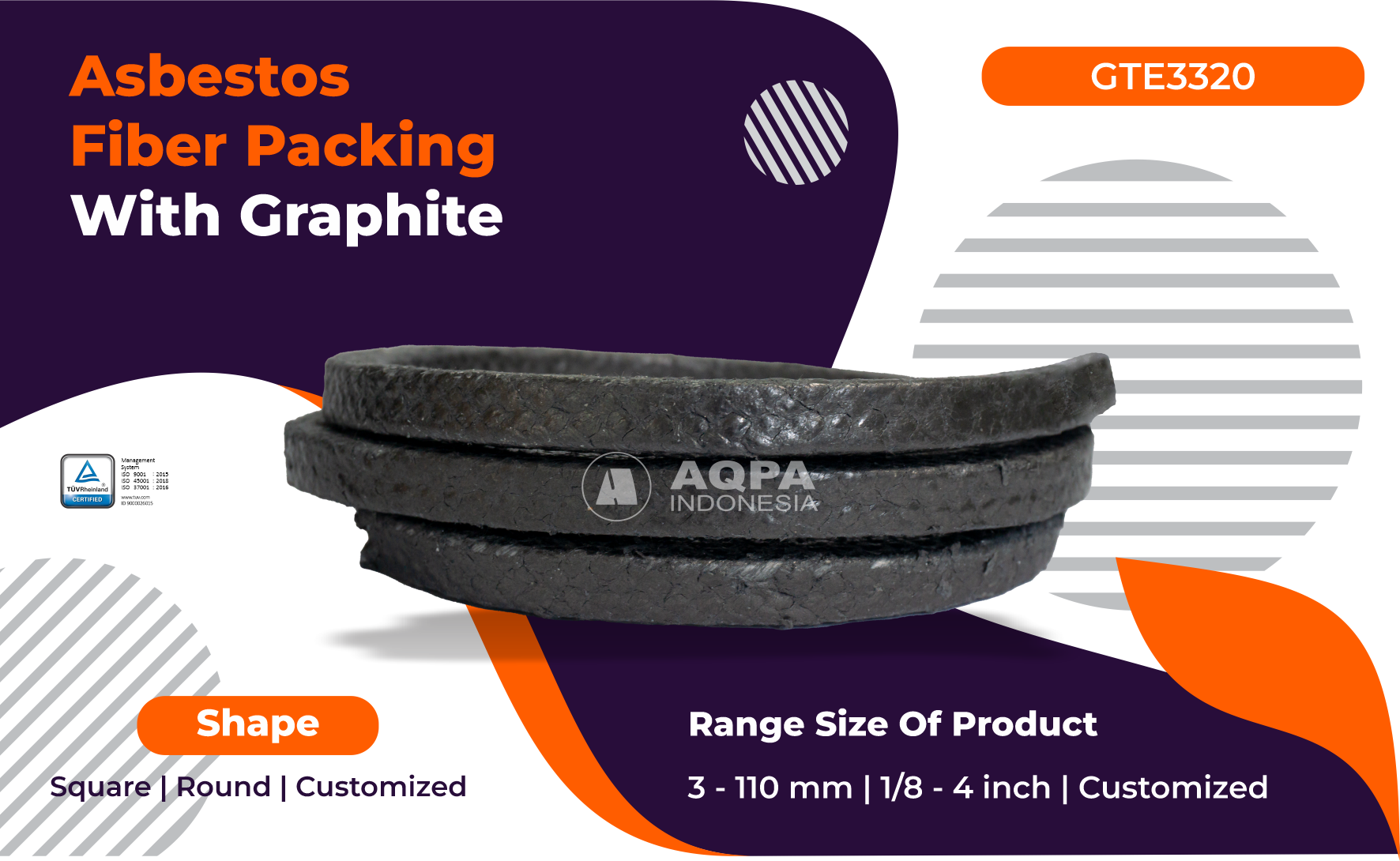

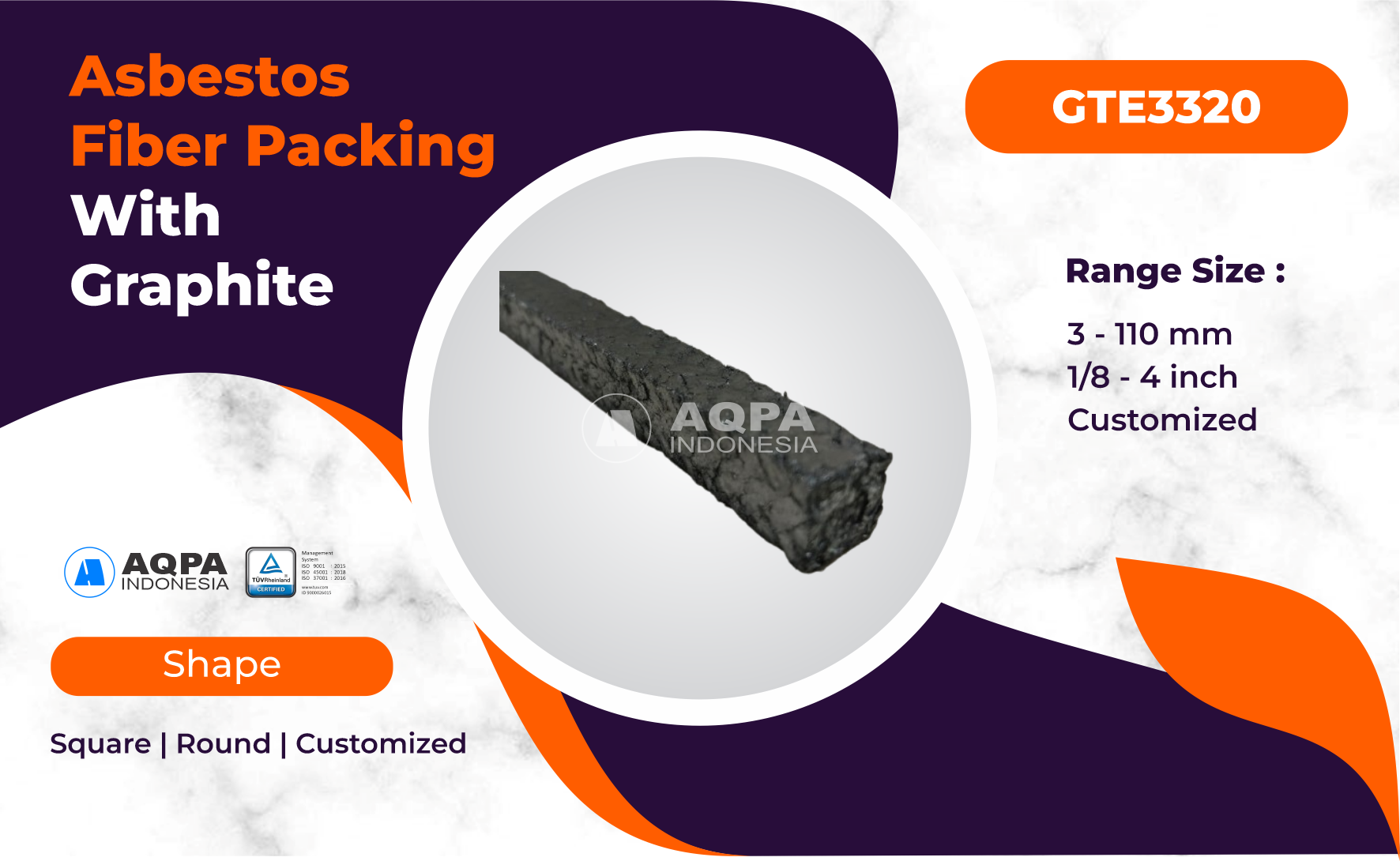

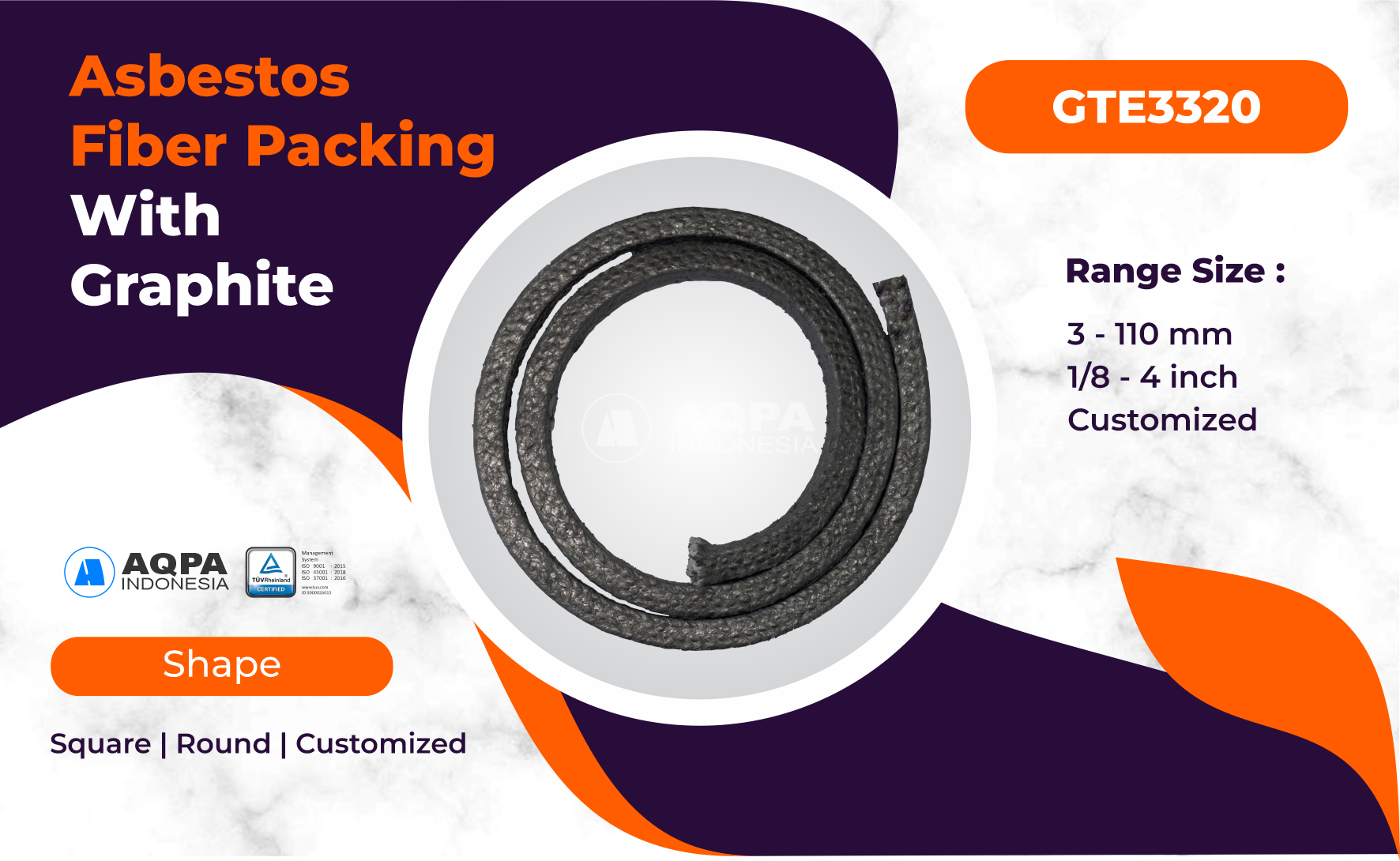

GTE 3320 Asbes Graphite
Mede of the mixture of asbestos yarn and silver graphite powder. Generally used for high speed rotating and reciprocating spindles, and static.

Dimension Spesification

Size  Length PER KG’s Length 2KG Length 5KG
3 mm 79,8 159,6 399
6 mm 20 40 100
8 mm 12,2 24,4 61
10 mm 8,6 17,2 43
12 mm 5,7 11,4 28,5
14 mm 4,4 8,8 22
16 mm 3,4 6,8 17
19 mm 2,4 4,8 12
22 mm 1,8 3,6 9
25 mm 1,4 2,8 7
30 mm 1 2 5
38 mm 0,7 1,4 3,5
Meters Meters Meters
P [bar]

15 Bar

pH

2 – 13

Speed

8 m/s

Temperature

200 C

Package Size

2 KG, 5 KG
