In the oil and gas industry, piping systems, pressure vessels, heat exchangers, valves, flanges, and high-pressure equipment require strong, stable, and reliable sealing performance. One of the most widely used gasket types for demanding industrial applications is the Spiral Wound Gasket.
A Spiral Wound Gasket is a metallic gasket manufactured by combining metal winding and flexible filler materials. This construction provides excellent sealing performance under extreme pressure, high temperature, and dynamic operating conditions.
AQPA Indonesia provides Engineered Gasket Solutions for pressure vessel and oil and gas applications, focusing on reliability, safety, and long-term sealing performance.

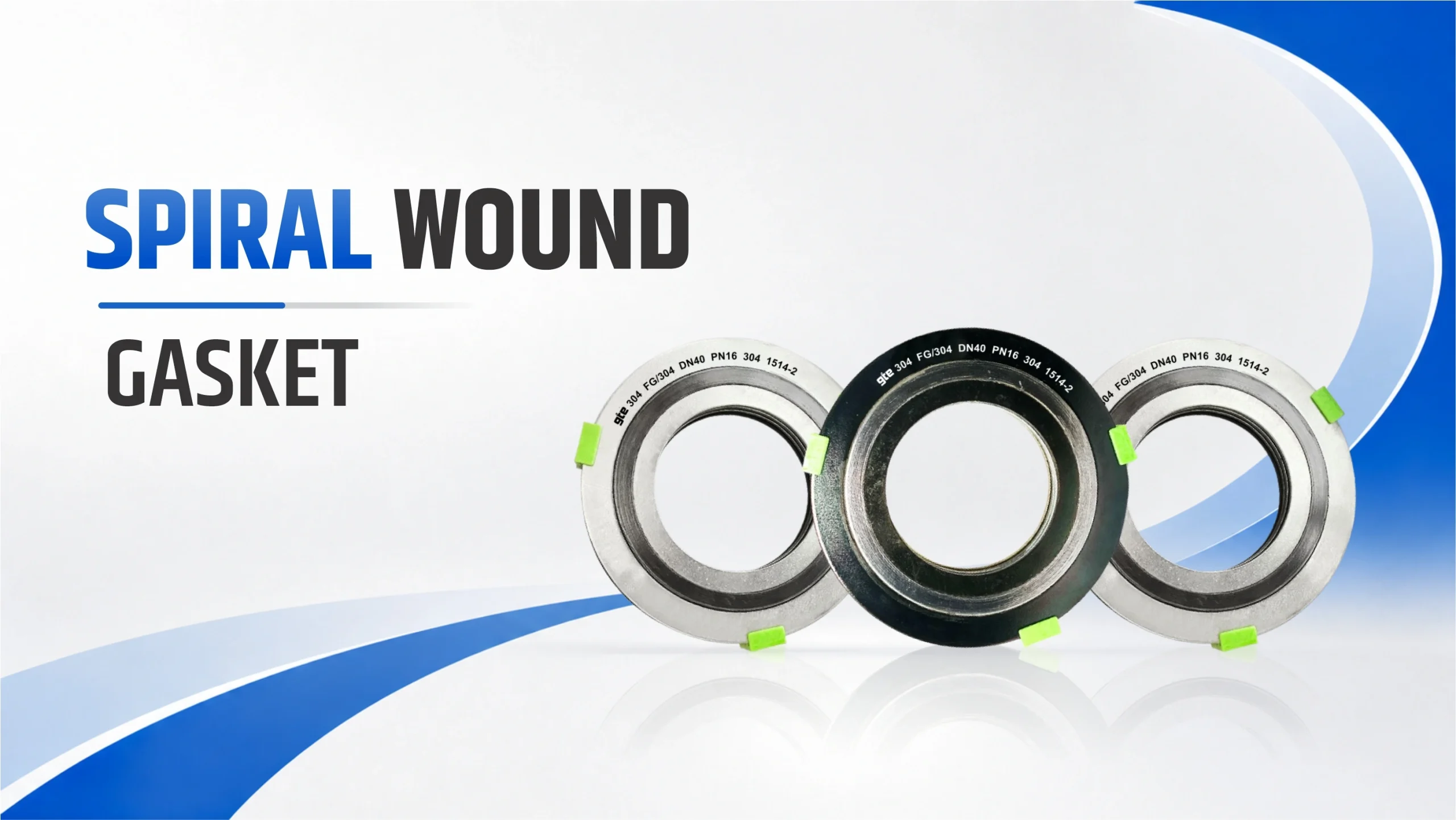

What Is a Spiral Wound Gasket?
A Spiral Wound Gasket is a gasket made from alternating layers of thin metal strip and flexible filler material wound in a spiral form. This structure combines the mechanical strength of metal with the sealing capability of flexible filler.
The metal winding provides strength, shape stability, and pressure resistance. Meanwhile, the filler material helps seal microscopic imperfections on the flange surface, preventing leakage of fluids or gases.
Spiral Wound Gaskets are commonly used in flange connections operating under severe service conditions, including pressure vessels, piping systems, refinery equipment, heat exchangers, boilers, valves, pumps, compressors, and other process equipment.
Why Spiral Wound Gasket Is Suitable for Pressure Vessels?
A pressure vessel is designed to store or process fluids and gases under pressure. Because of this demanding condition, the sealing system must be reliable and properly engineered.
Spiral Wound Gasket is suitable for pressure vessel applications due to several key advantages:
1. High Pressure Resistance
The spiral construction with metal winding provides excellent mechanical strength, allowing the gasket to withstand high operating pressure in pressure vessel flange connections.
2. Stable Performance at Extreme Temperatures
The spiral construction with metal winding provides excellent mechanical strength, allowing the gasket to withstand high operating pressure in pressure vessel flange connections.
3. Reliable Sealing Performance
The flexible filler helps fill minor surface irregularities on the flange. With proper compression, the gasket provides a tight and stable sealing performance.
4. Widely Used in Oil and Gas Industry
The oil and gas industry requires high-performance gaskets because the service media may include gas, oil, steam, chemicals, or process fluids. Spiral Wound Gasket is a preferred choice due to its material flexibility and strong sealing performance.
Main Components of Spiral Wound Gasket
A Spiral Wound Gasket generally consists of several key components:
Metal winding is a thin metal strip formed into a spiral structure. Common materials include stainless steel, carbon steel, or specific alloys depending on the application requirements.
The function of metal winding is to provide structural strength, maintain gasket stability, and help the gasket resist operating pressure.
Flexible filler is the sealing material wound together with the metal strip. This filler plays a major role in creating a reliable seal on the flange surface.
AQPA offer materials include:
- Â Graphite filler, suitable for high-temperature applications and media such as steam, oil, gas, and certain chemicals.
- Â PTFE filler, suitable for chemical resistance and applications requiring better compatibility with aggressive media.
- Â Ceramic, suitable for very high-temperature applications depending on technical requirements.
Mica, also suitable for very high-temperature applications.
The inner ring protects the gasket from flow turbulence, prevents filler intrusion into the process line, and improves gasket stability.
The outer ring works as a guide ring, helping position the gasket correctly on the flange. It also helps prevent over-compression during bolt tightening.
Advantages of AQPA Indonesia Spiral Wound Gasket
AQPA Indonesia offers gasket solutions with an engineered sealing approach. This means gasket selection is not only based on size, but also on operating conditions, media, pressure, temperature, flange type, and applicable standards.
Key advantages include:
- Designed for pressure vessel and high-pressure industrial applications.
- Manufactured with a combination of metal winding and flexible filler materials.
- Provides strong, stable, and reliable sealing performance.
- Suitable for oil and gas, petrochemical, refinery, power plant, and process industries.
- Can be customized based on winding material, filler type, size, and ring configuration.
- Supports replacement, new project requirements, and other.
Important Factors in Selecting Spiral Wound Gasket
To ensure optimal performance, Spiral Wound Gasket specification must be selected carefully. Important factors include:
| Selection Factor | Deskripsi |
|---|---|
| 1 Service Media | The type of fluid or gas affects the selection of filler and metal winding material. Steam, oil, gas, chemicals, and water each require different material considerations. |
| 2 : The maximum and minimum operating temperatures. | Pressure rating is critical in determining the suitable gasket type. The gasket must withstand both normal operating pressure and maximum pressure conditions. |
| 3 Suhu Operasional | Temperature determines the most suitable filler material. Graphite is commonly used for high-temperature service, while PTFE may be considered for certain chemical resistance requirements. |
| 4 Flange Type | Flange types such as raised face, flat face, tongue and groove, or male-female flange must be considered to ensure proper gasket installation. |
| 5 Dimensional Standard | Spiral Wound Gaskets are commonly manufactured according to flange standards such as ASME, JIS, DIN, or other project-specific standards. |
Kesimpulan
Spiral Wound Gasket is one of the most reliable sealing solutions for pressure vessel and oil and gas applications. With its combination of metal winding and flexible filler materials, this gasket delivers strong, stable, and dependable sealing performance under extreme pressure and temperature conditions.
For pressure vessels, piping systems, heat exchangers, refinery equipment, petrochemical plants, and other industrial applications, AQPA Indonesia provides Engineered Gasket Solutions tailored to specific operating requirements.
A Spiral Wound Gasket may appear to be a small component, but it plays a critical role in maintaining safety, efficiency, and reliability in industrial operations.
