HIGH STRENGTH GRAPHITE YARN, IMPREGNATED WITH PTFE DISPERSION. BRAIDED BY HIGH STRENGTH PTFE FILLAMENT YARN WITH GRAPHITE IMPREGNATION. THE CHARACTERISTICS ARE SIMILAR TO “CGFO”.
Struktur
The packing contains more graphite content compared with normal PTFE, the characteristics are similar to GFO, has cross-sectional density, and some particles of graphite on surface has lubricating qualities of the PTFE graphite fiber.
Data Sheet

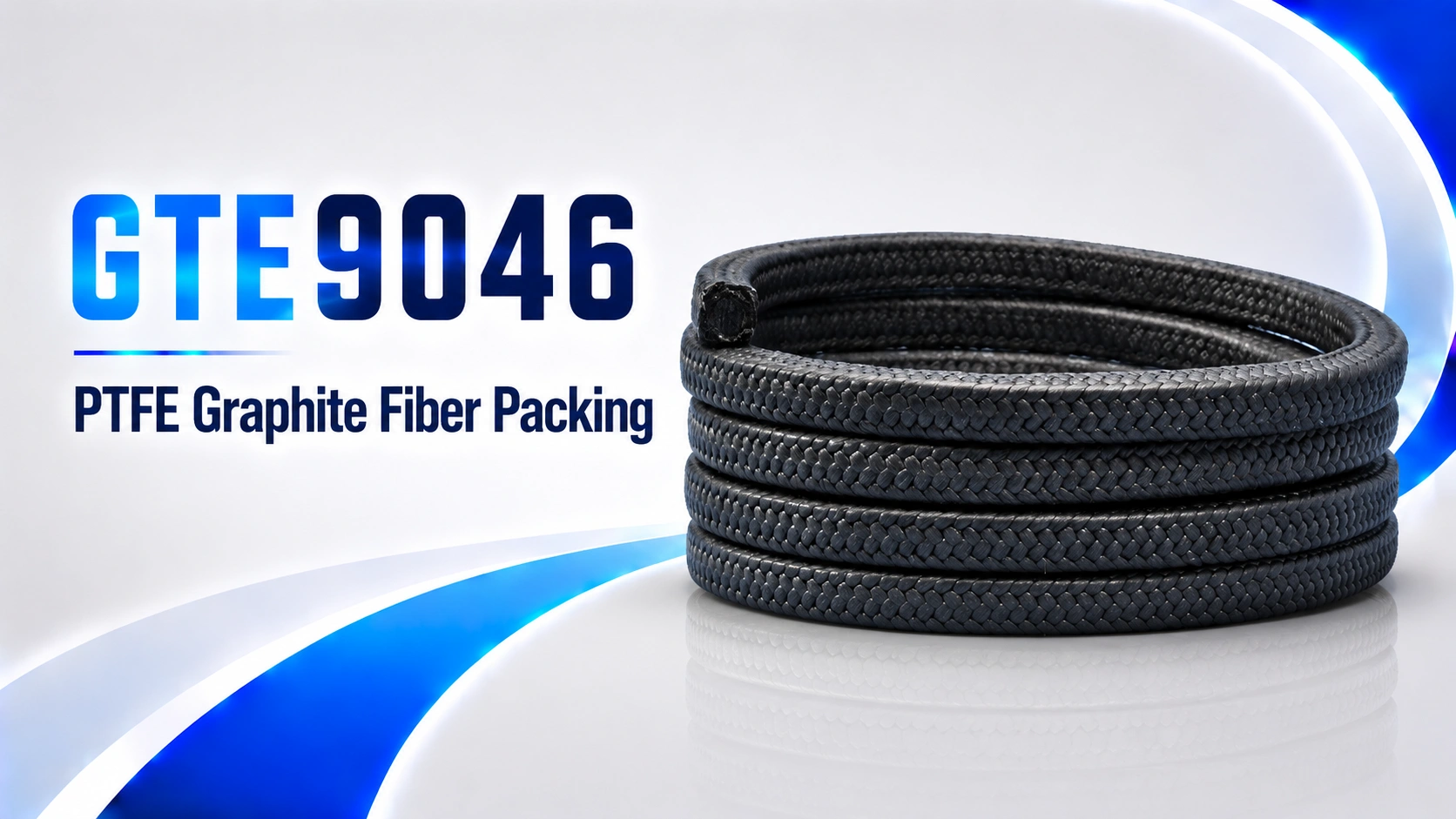

Construction :  PTFE Graphite Fiber Packing
Temperature :  -100°C To + 280°C
pH Range    :  0 – 14
Shaft Speed  :  To 20 m/s
Pressure     : To 30 bar (rotating)
               To 100 bar (reciprocating)
               To 150 bar (static)
Aplication
Recommended for application on the shaft working in direct contact with any chemical elements.
